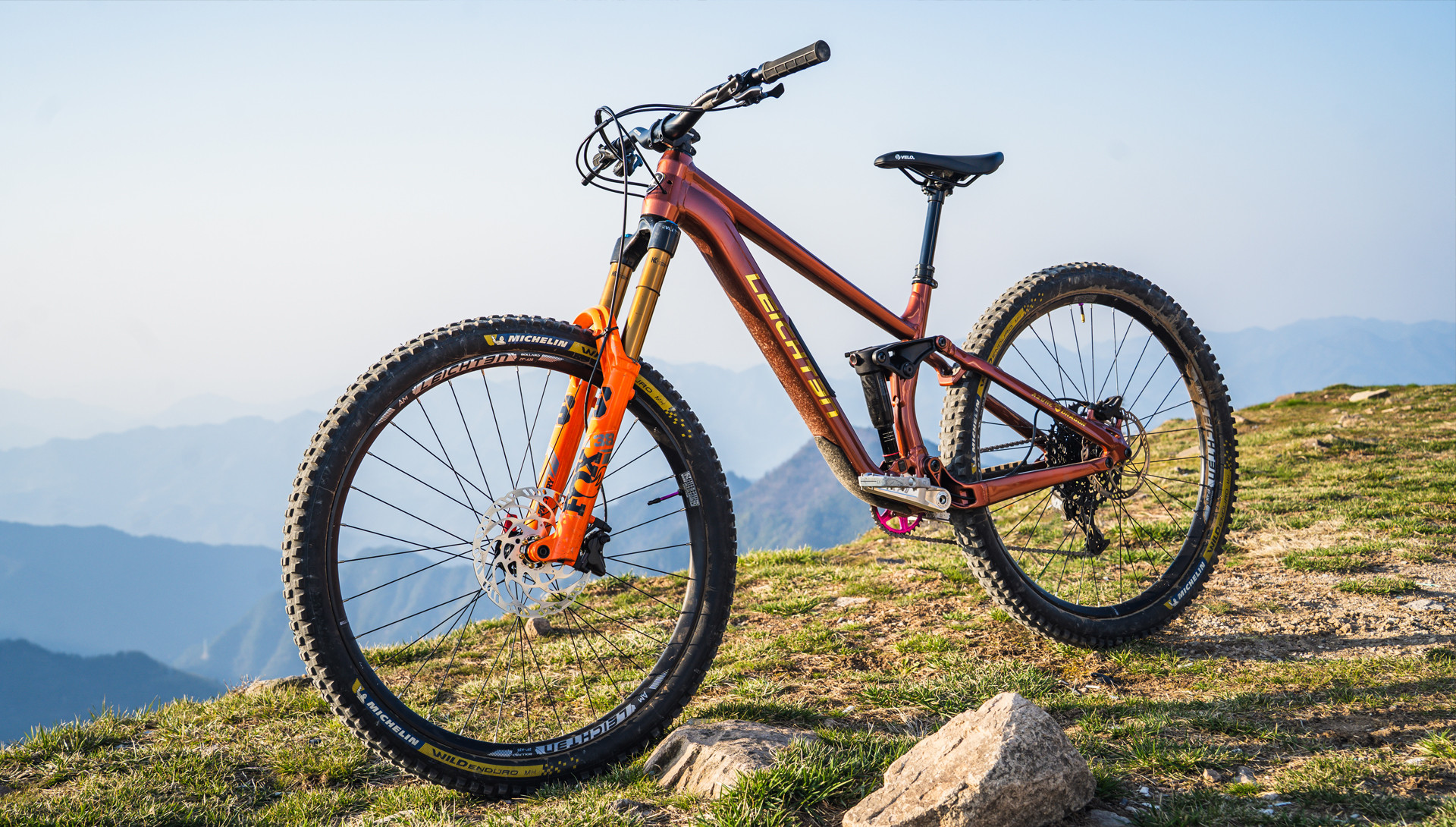

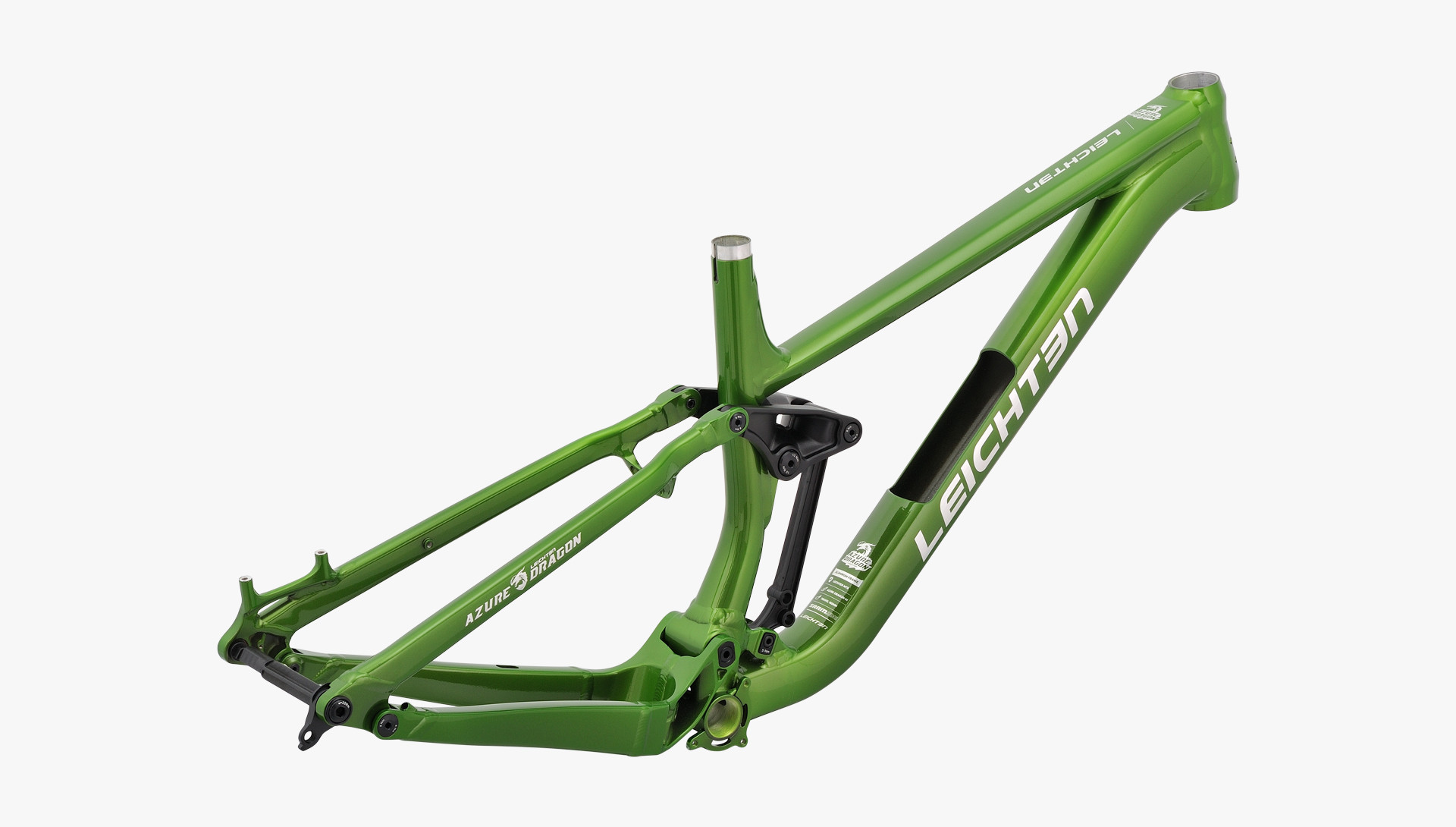

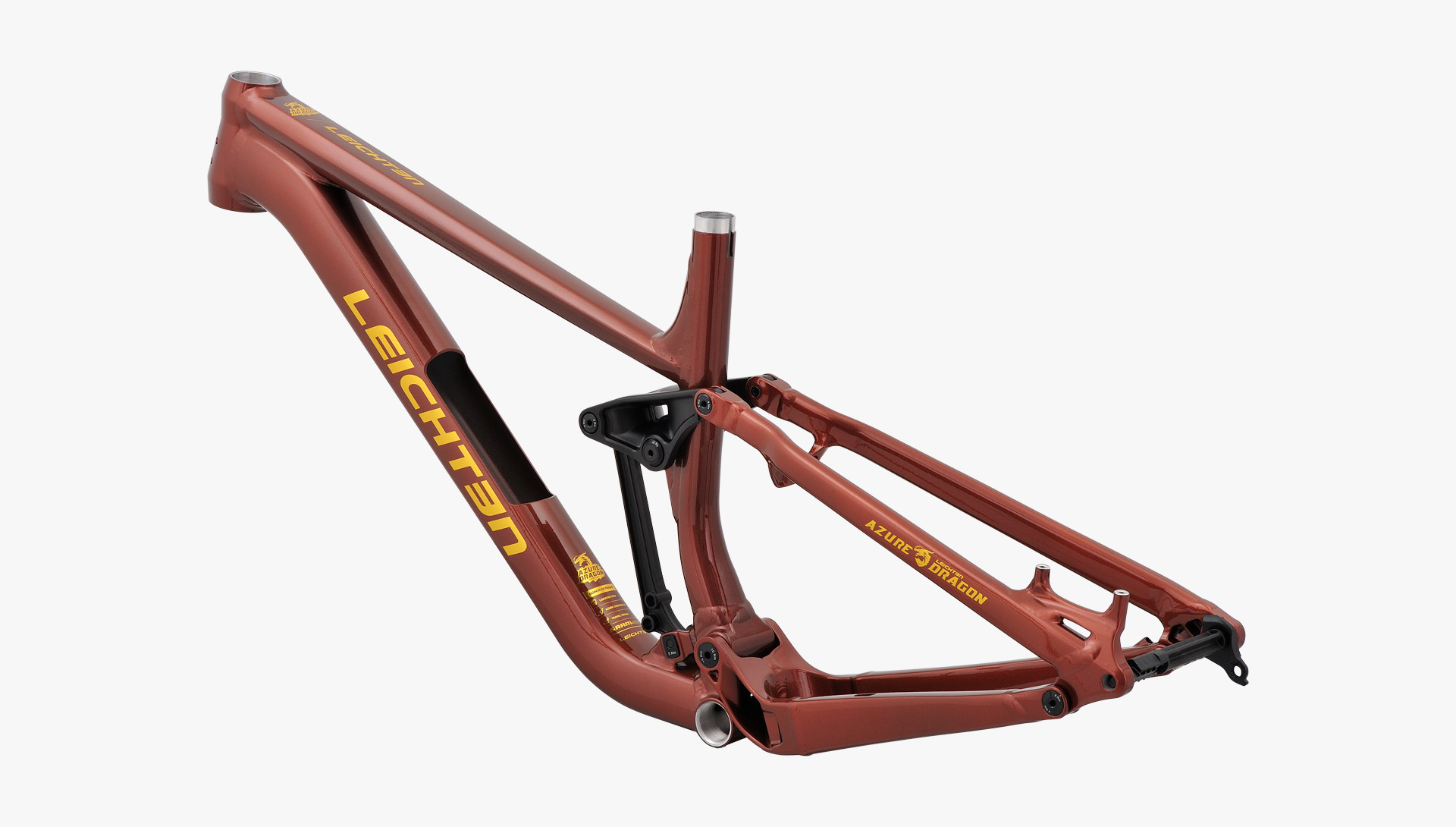

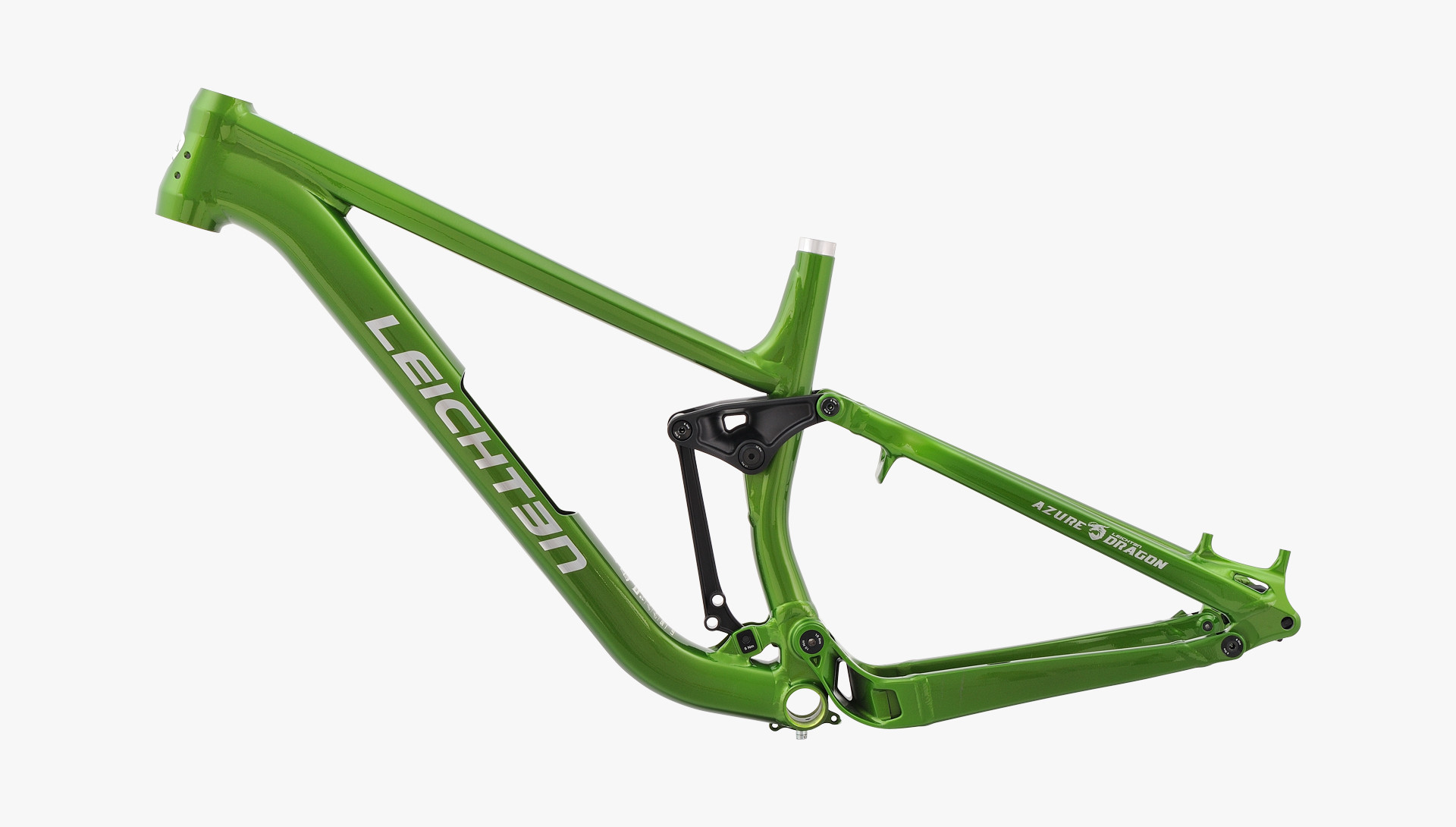

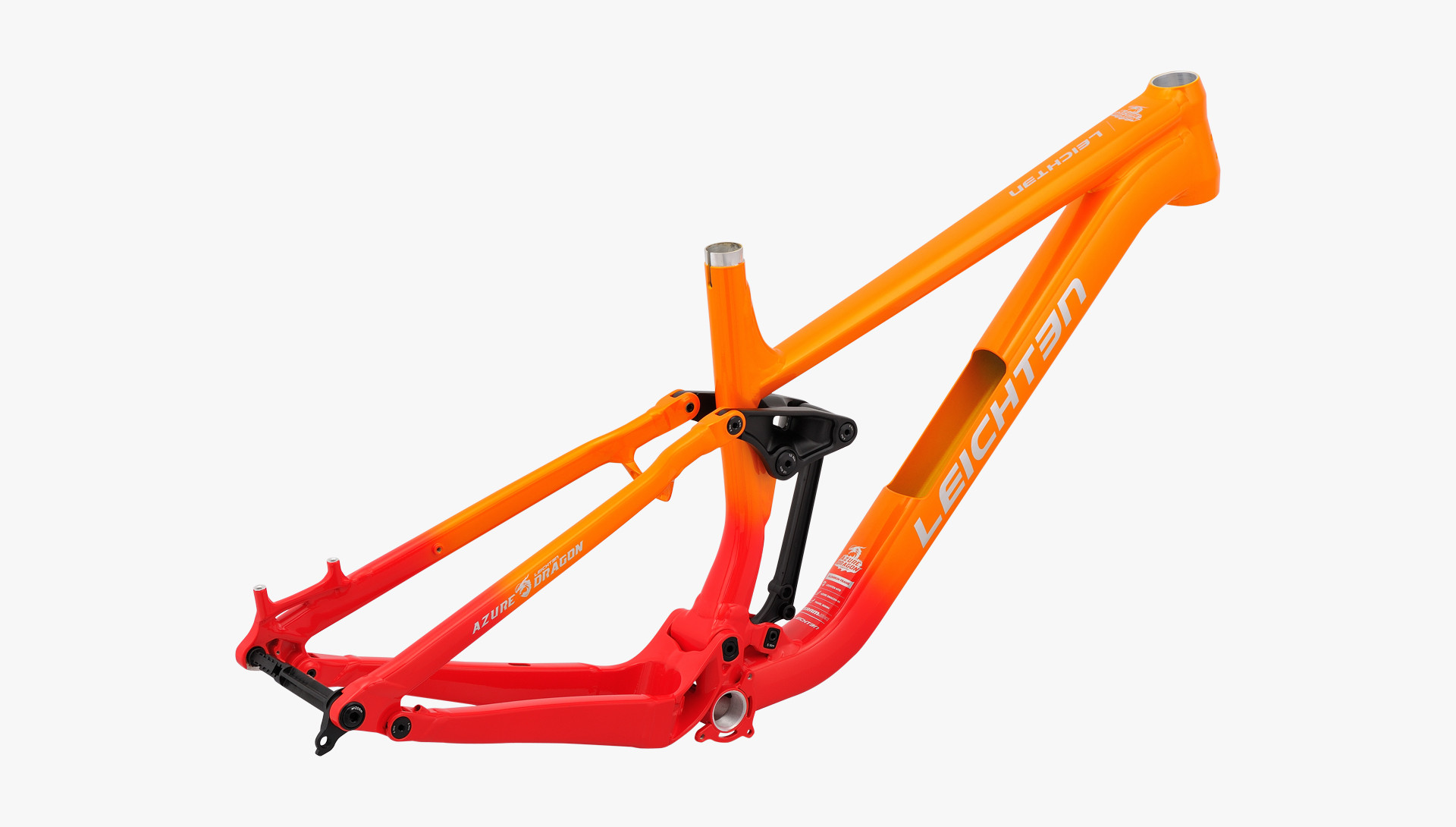

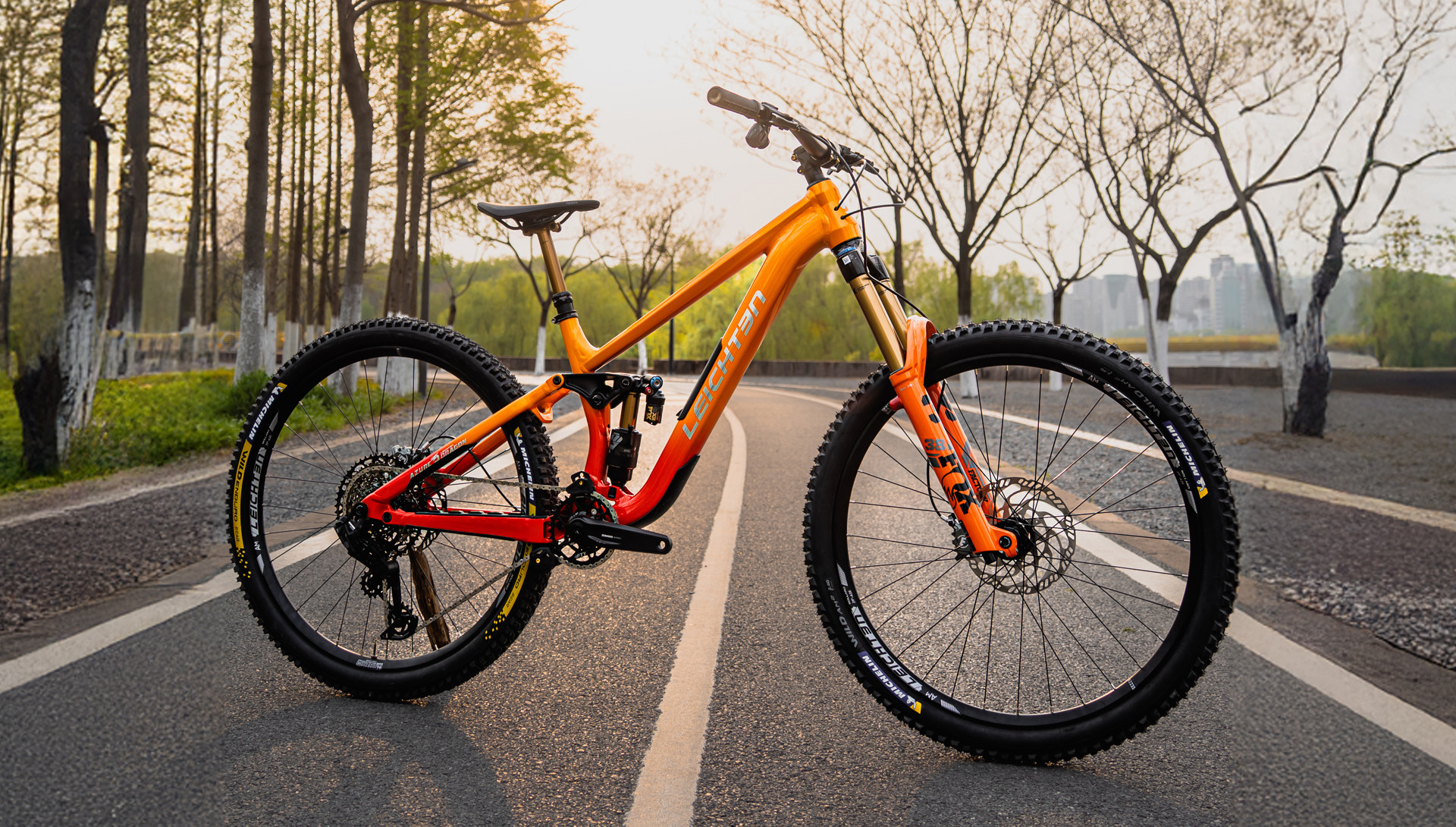

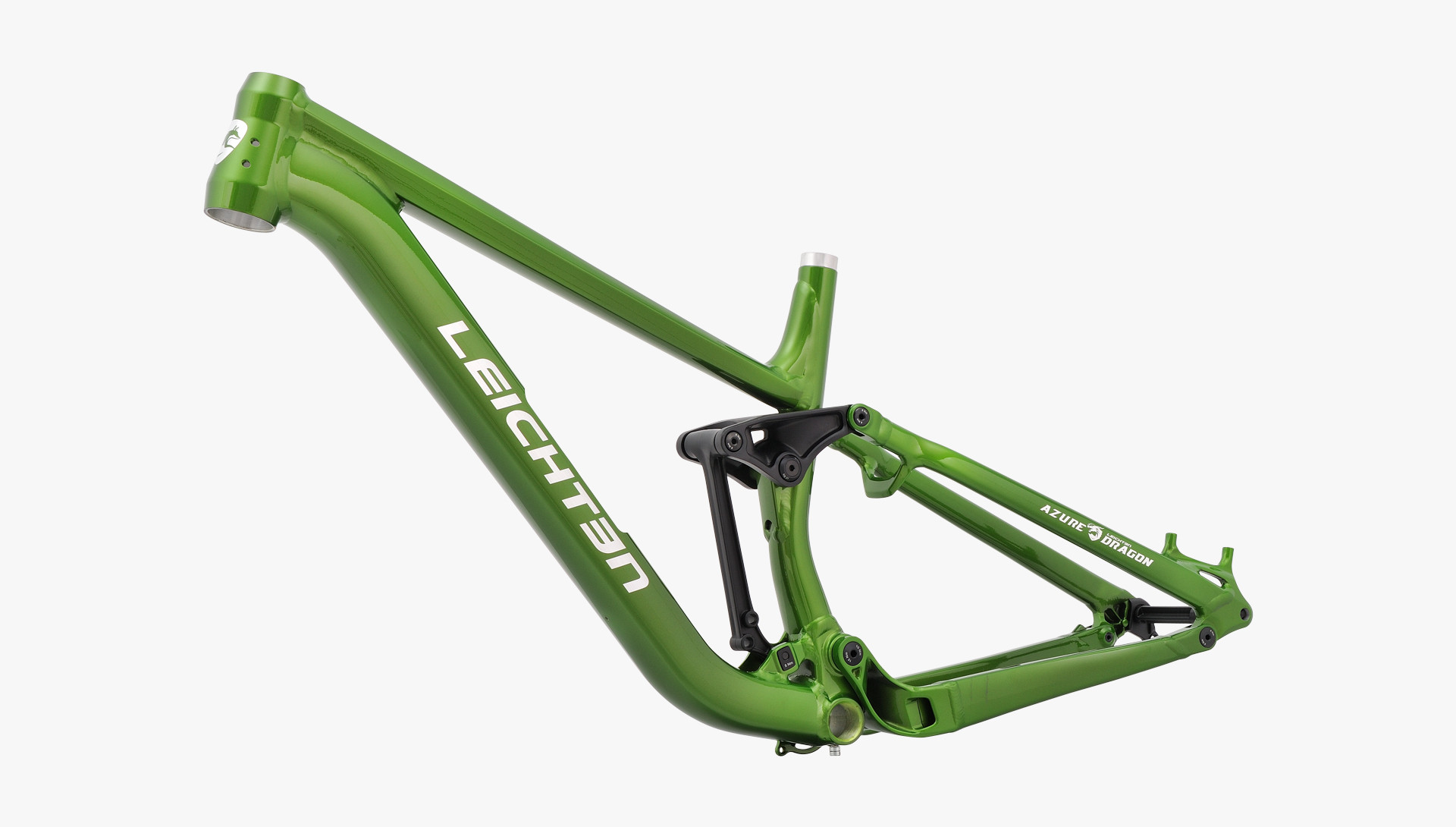

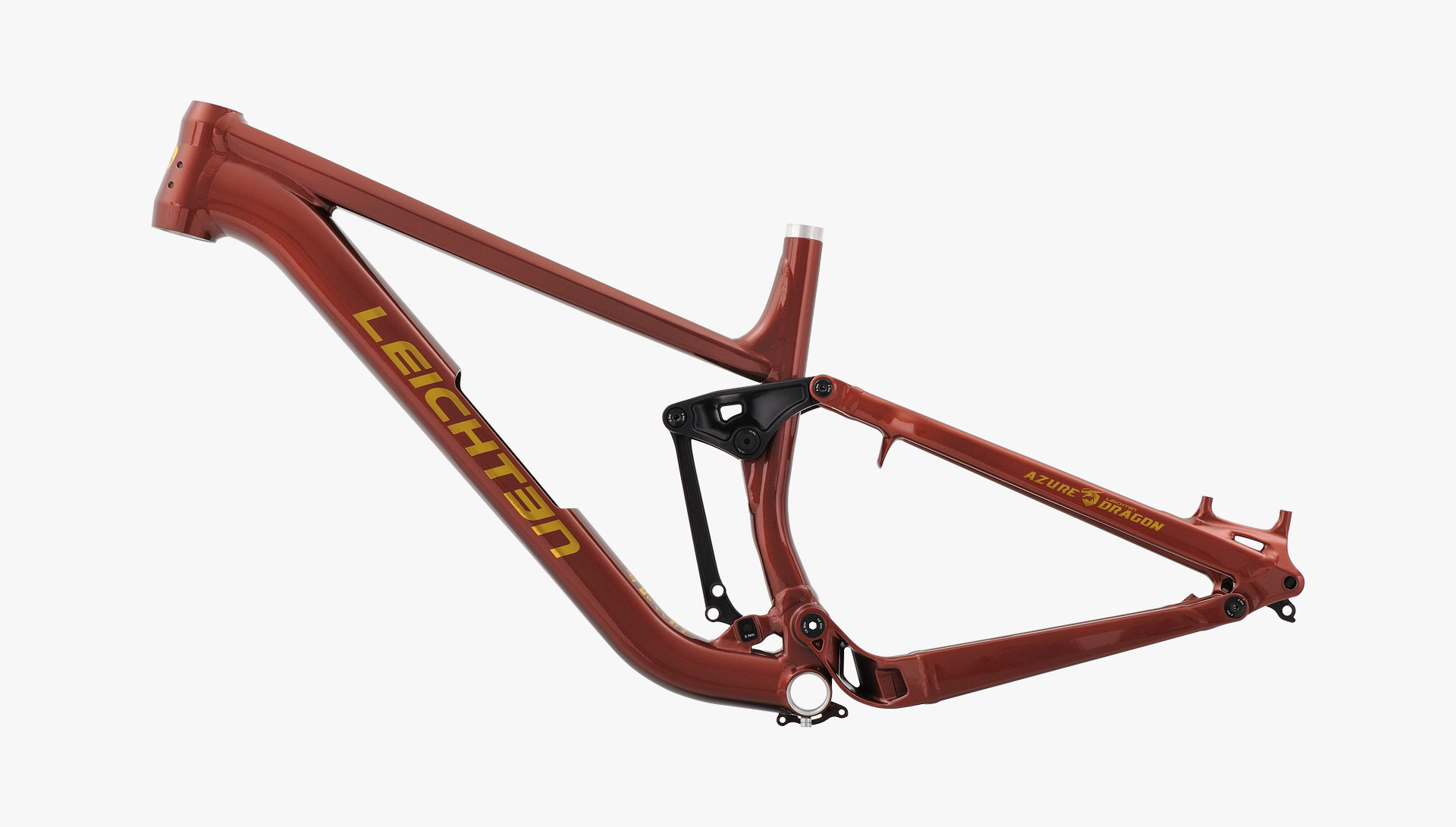

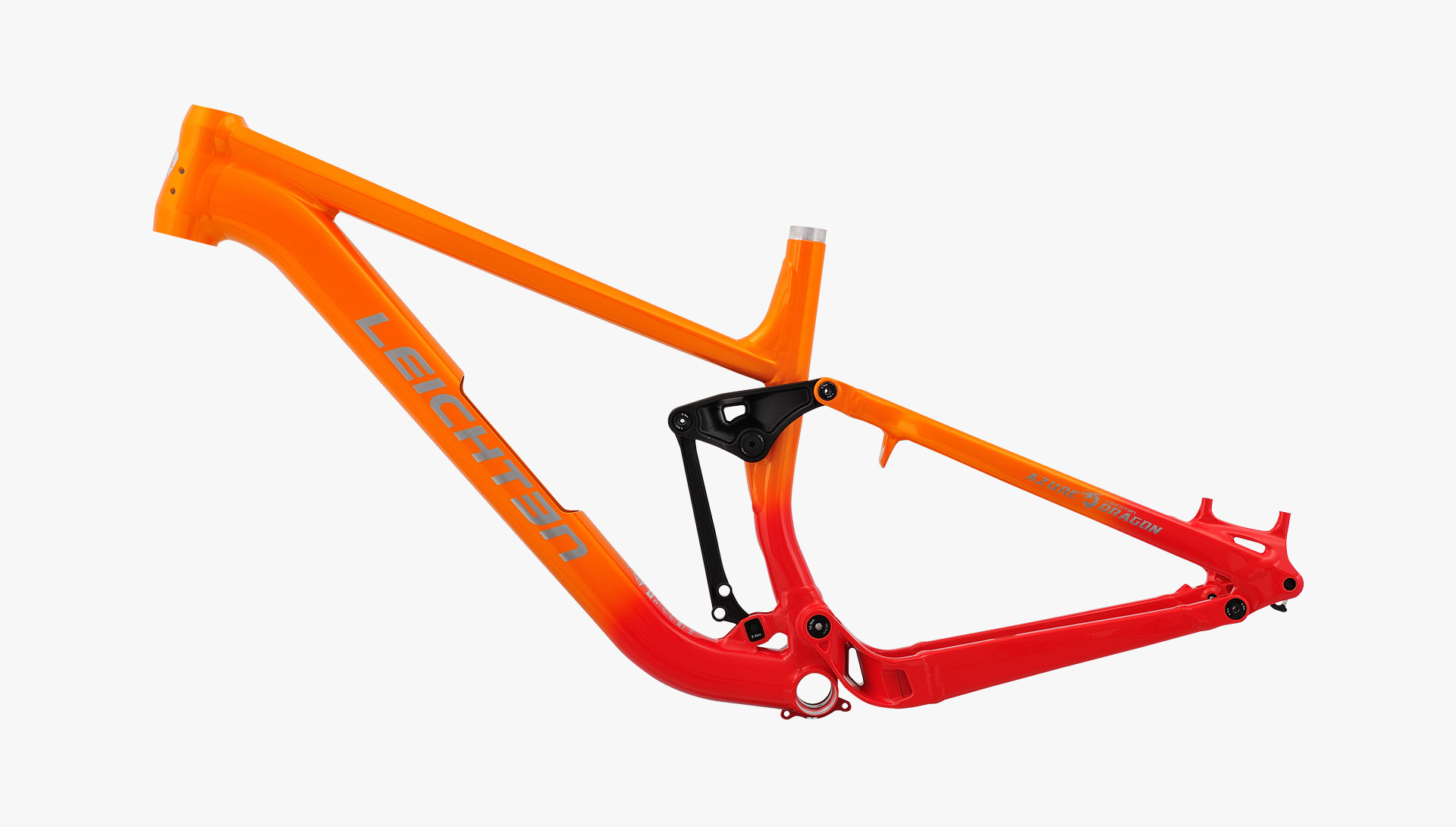

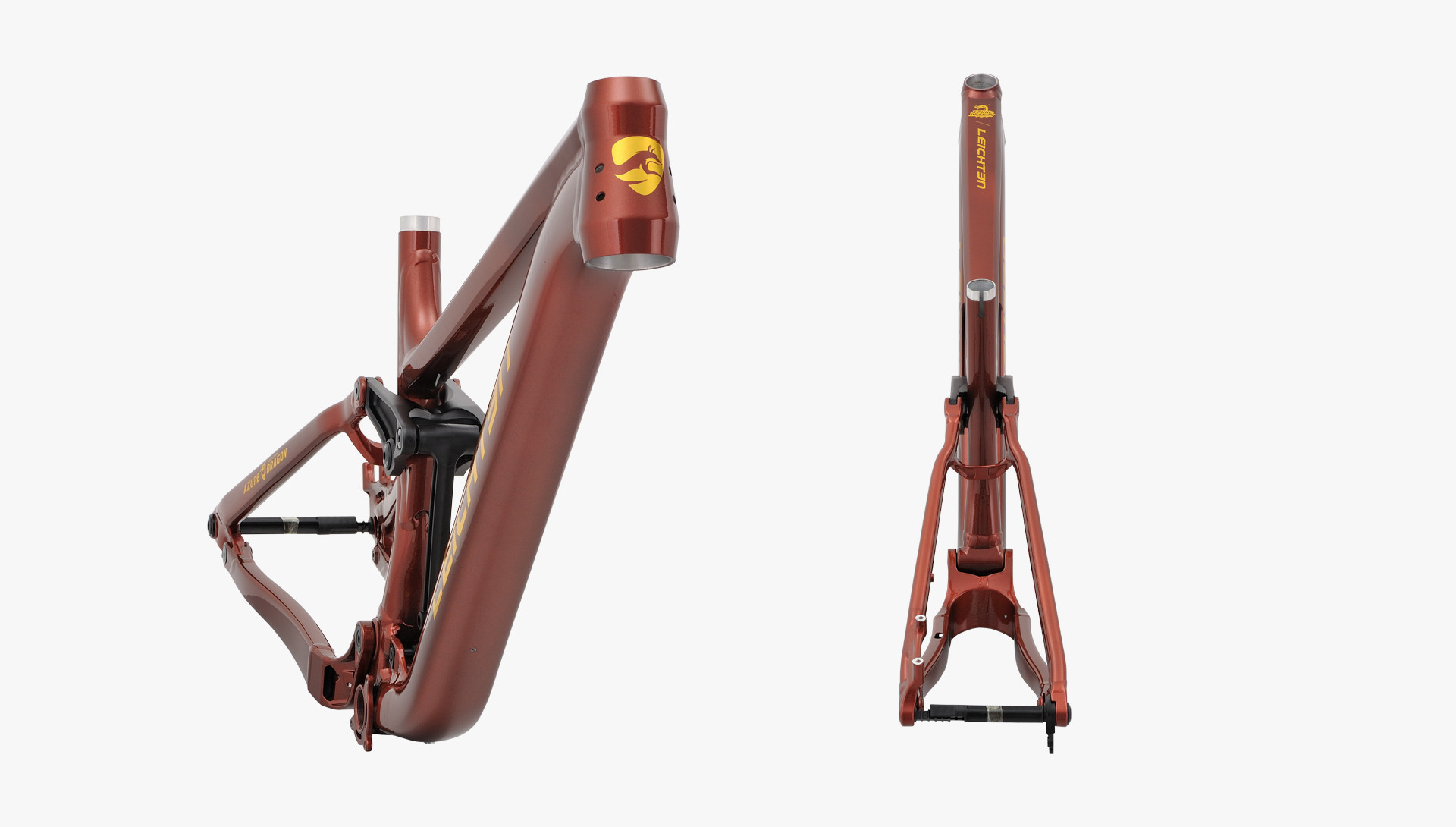

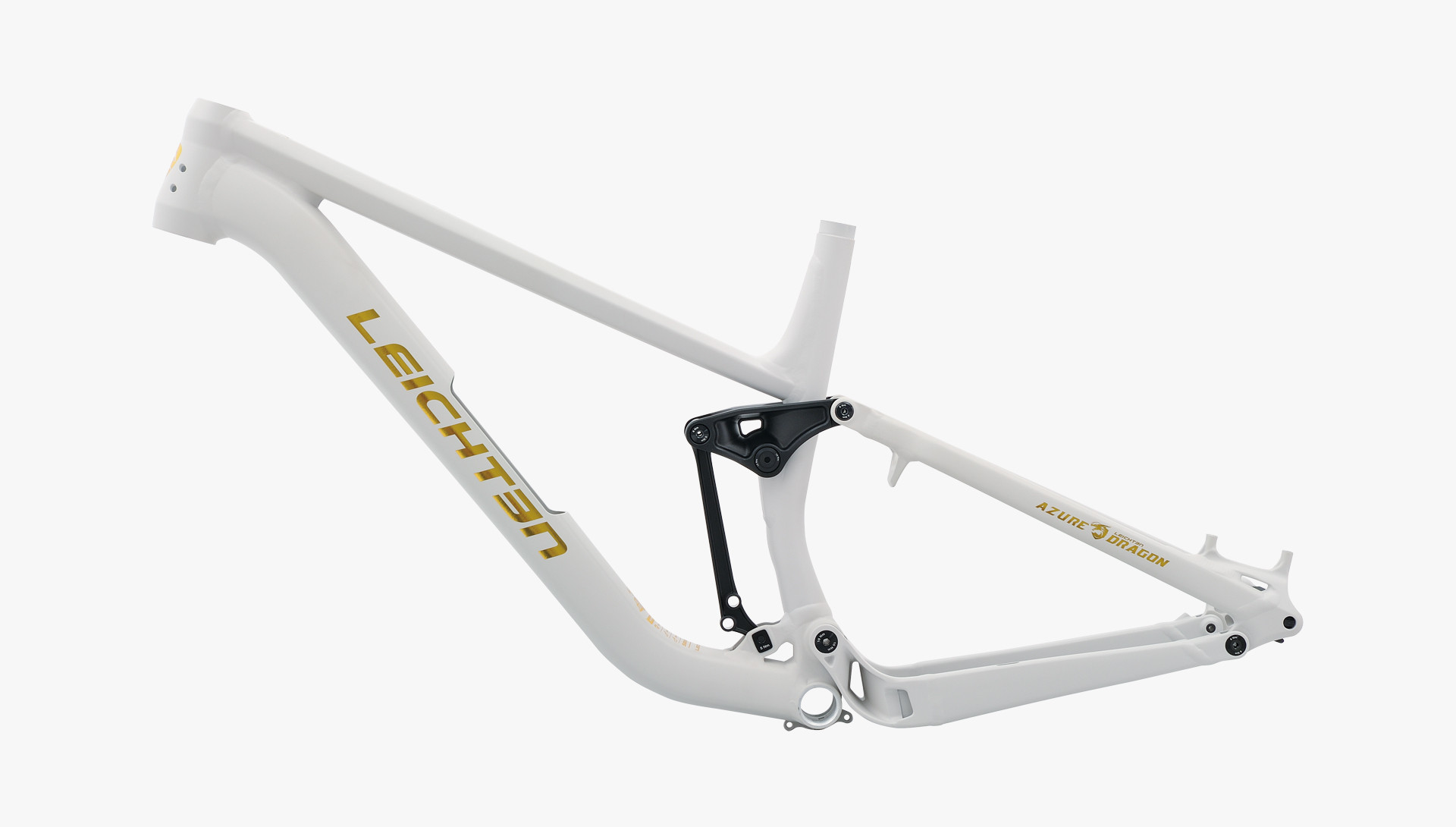

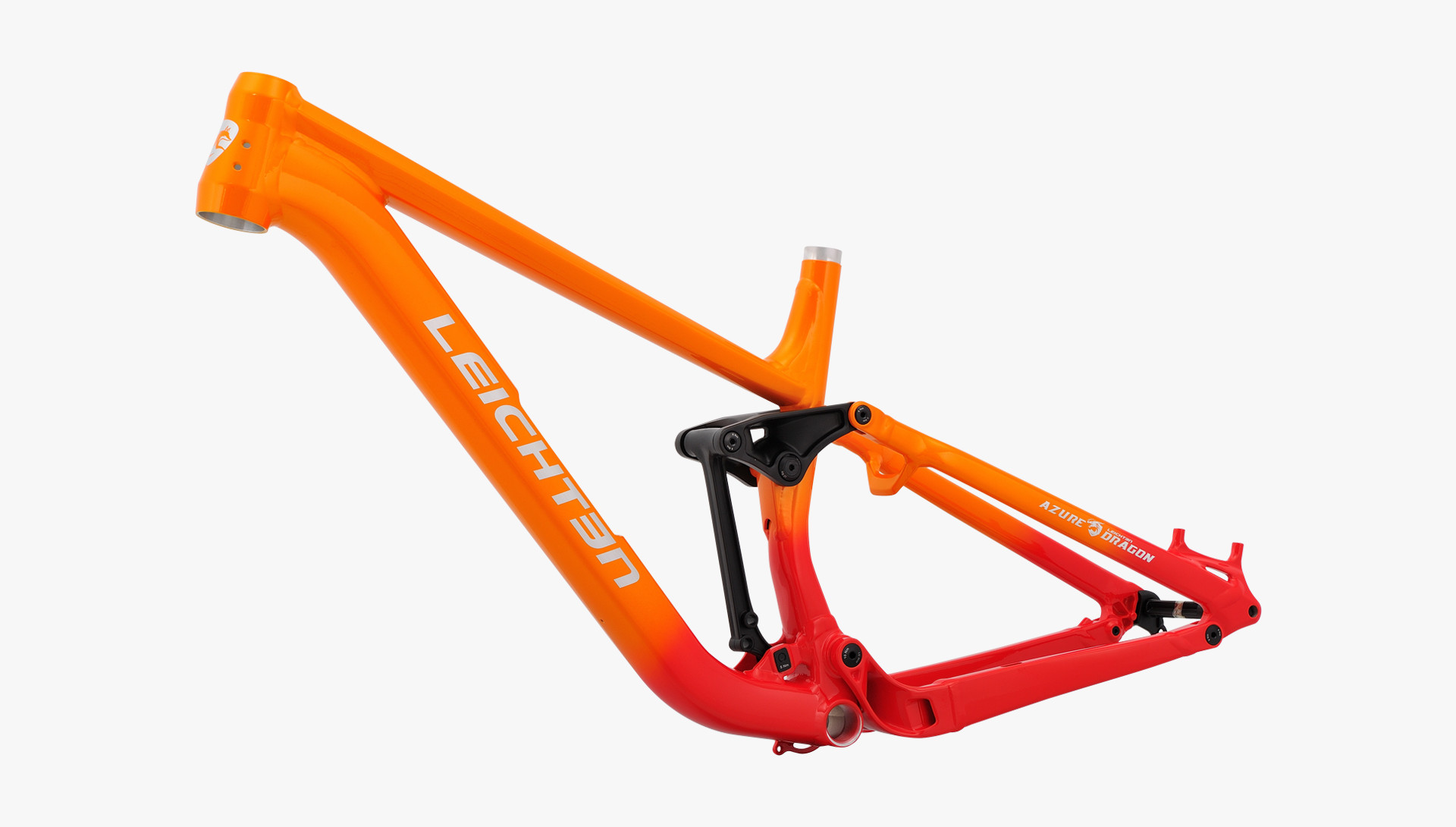

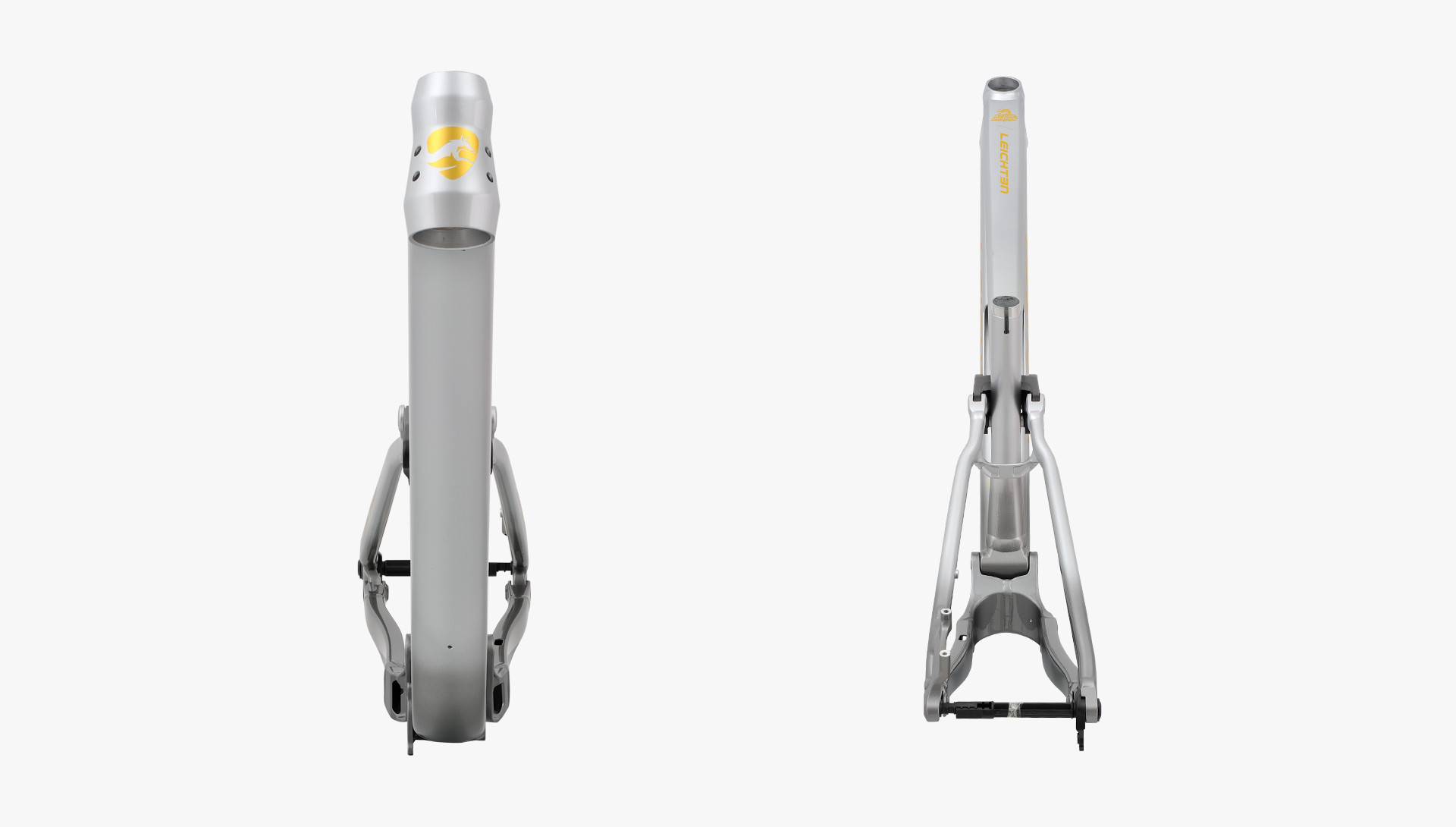

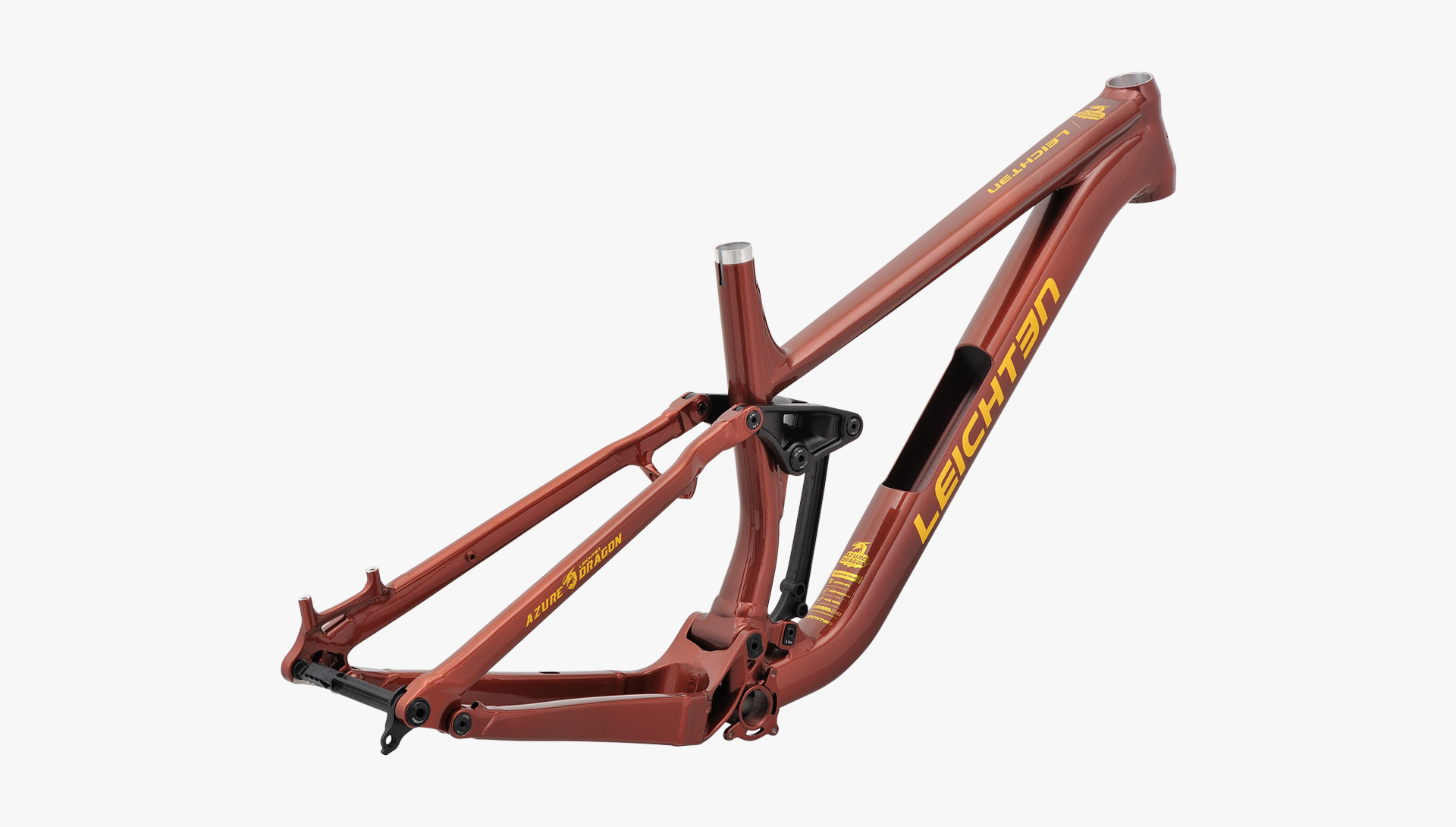

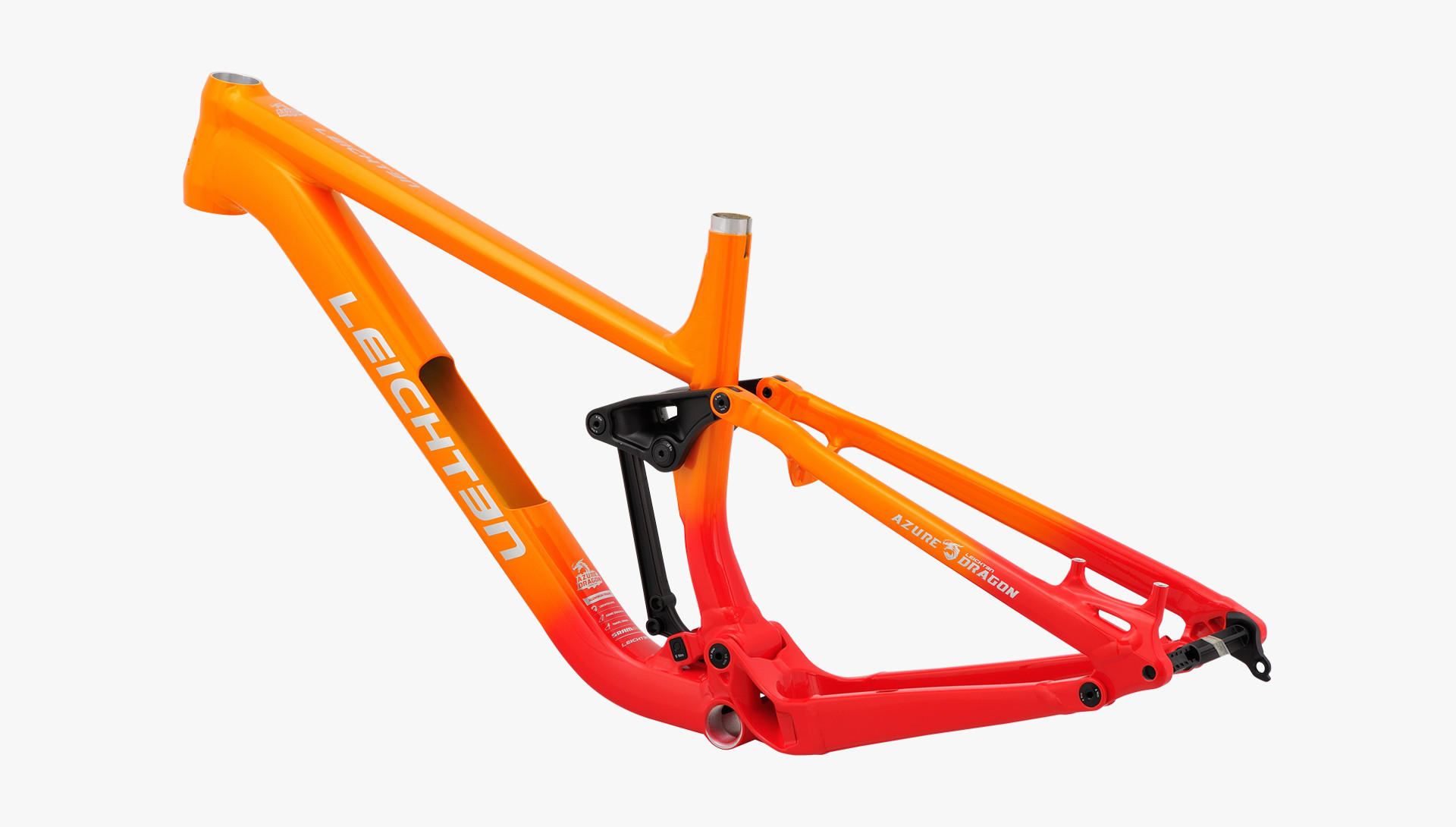

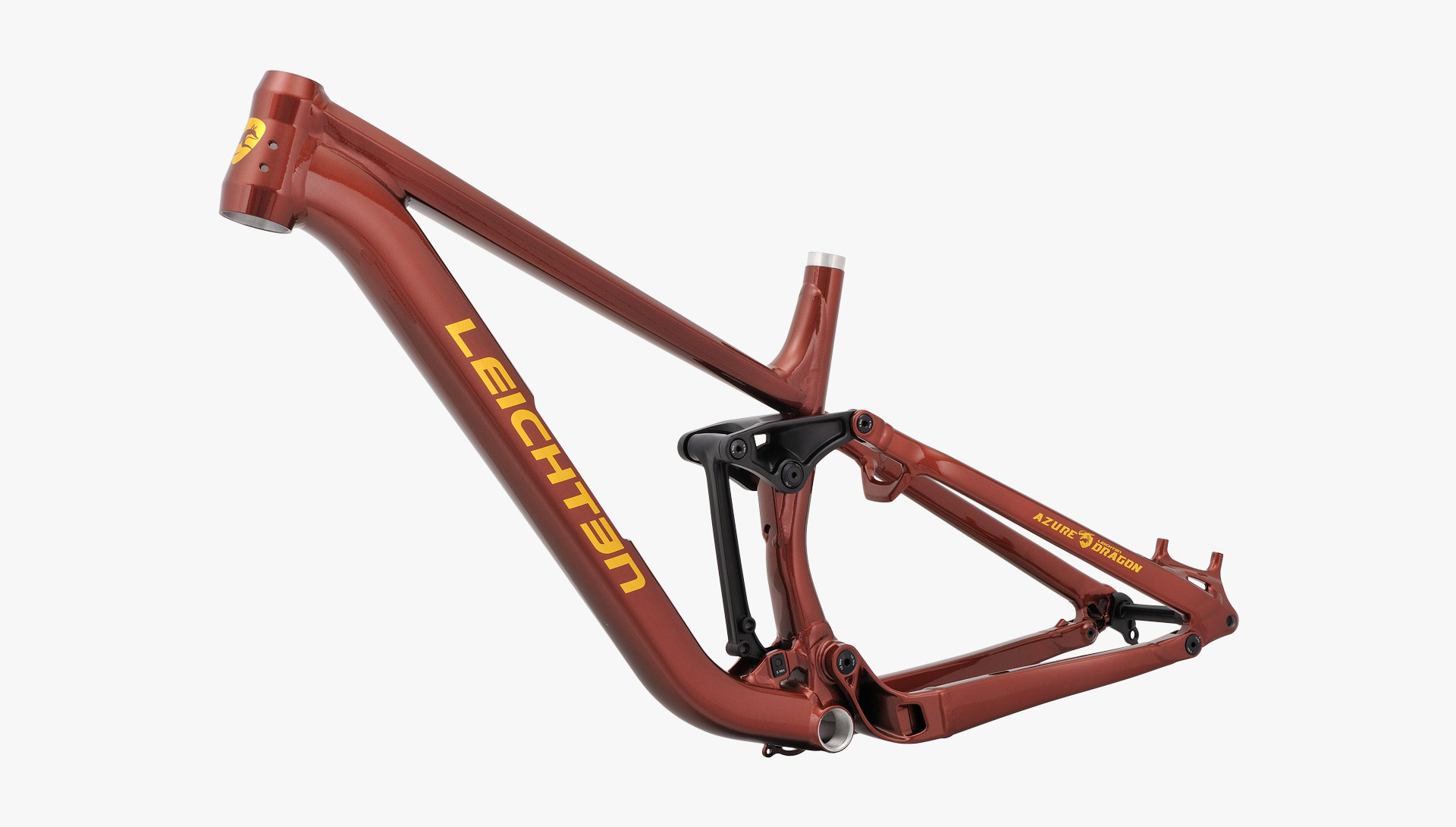

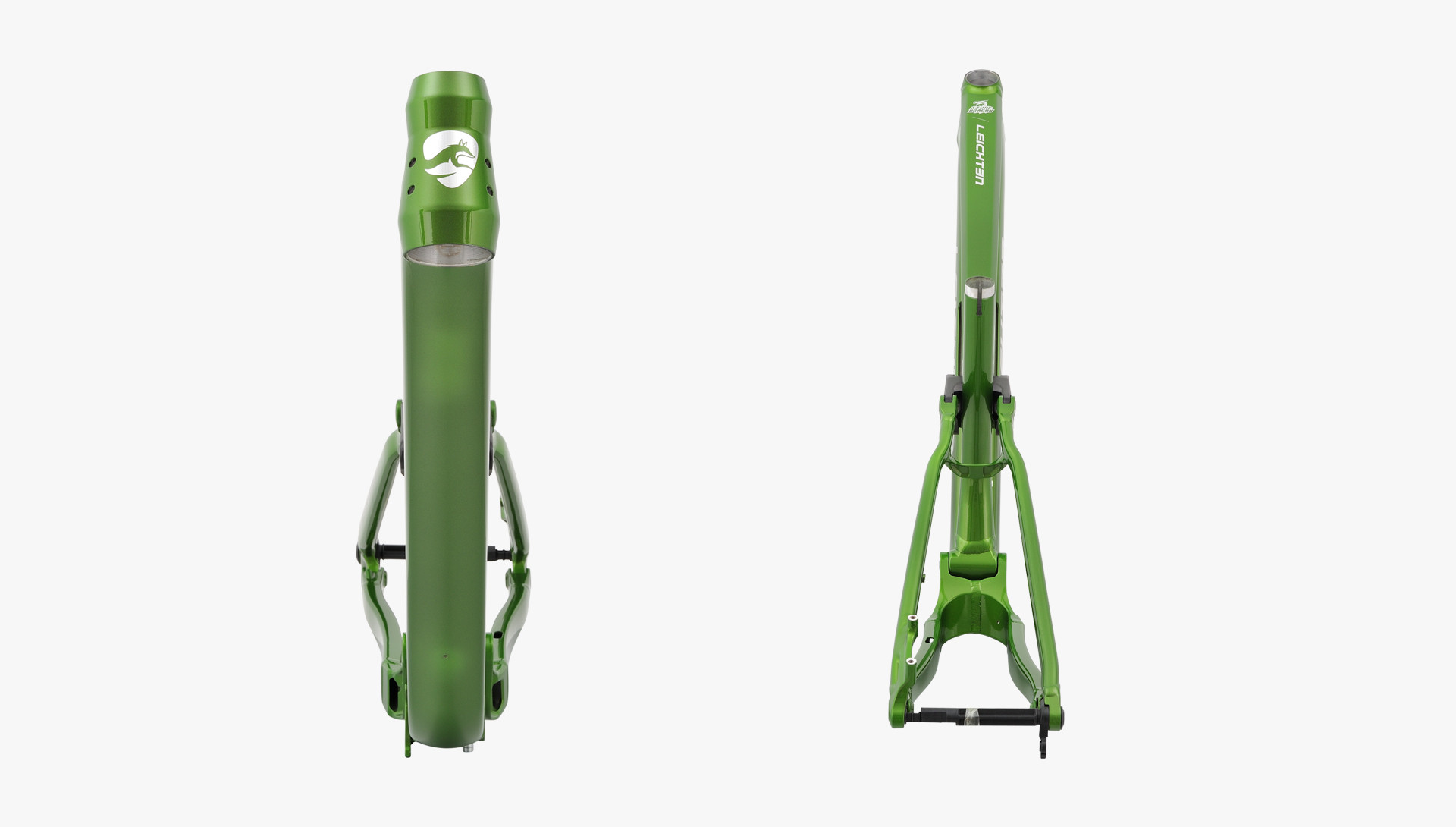

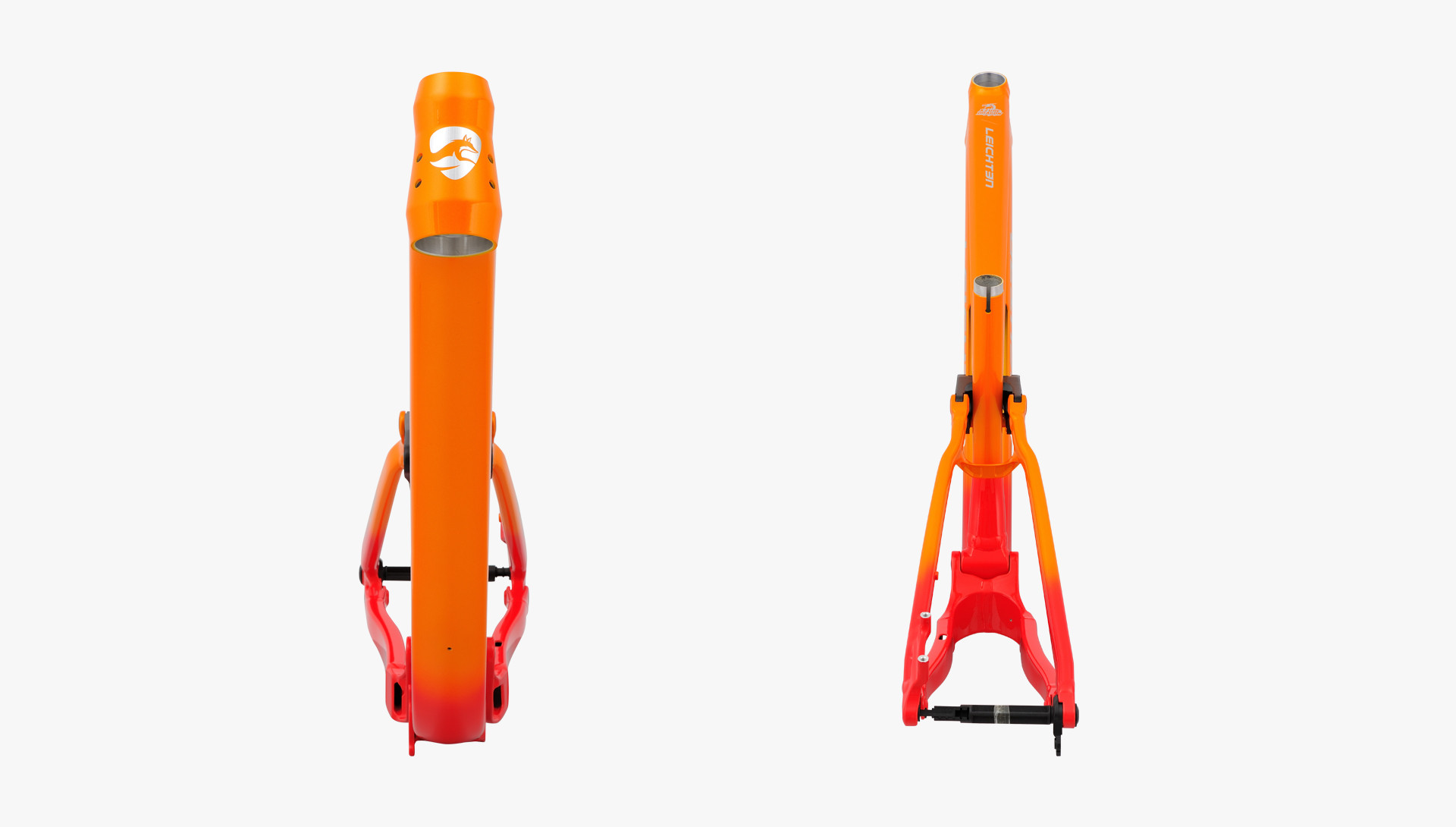

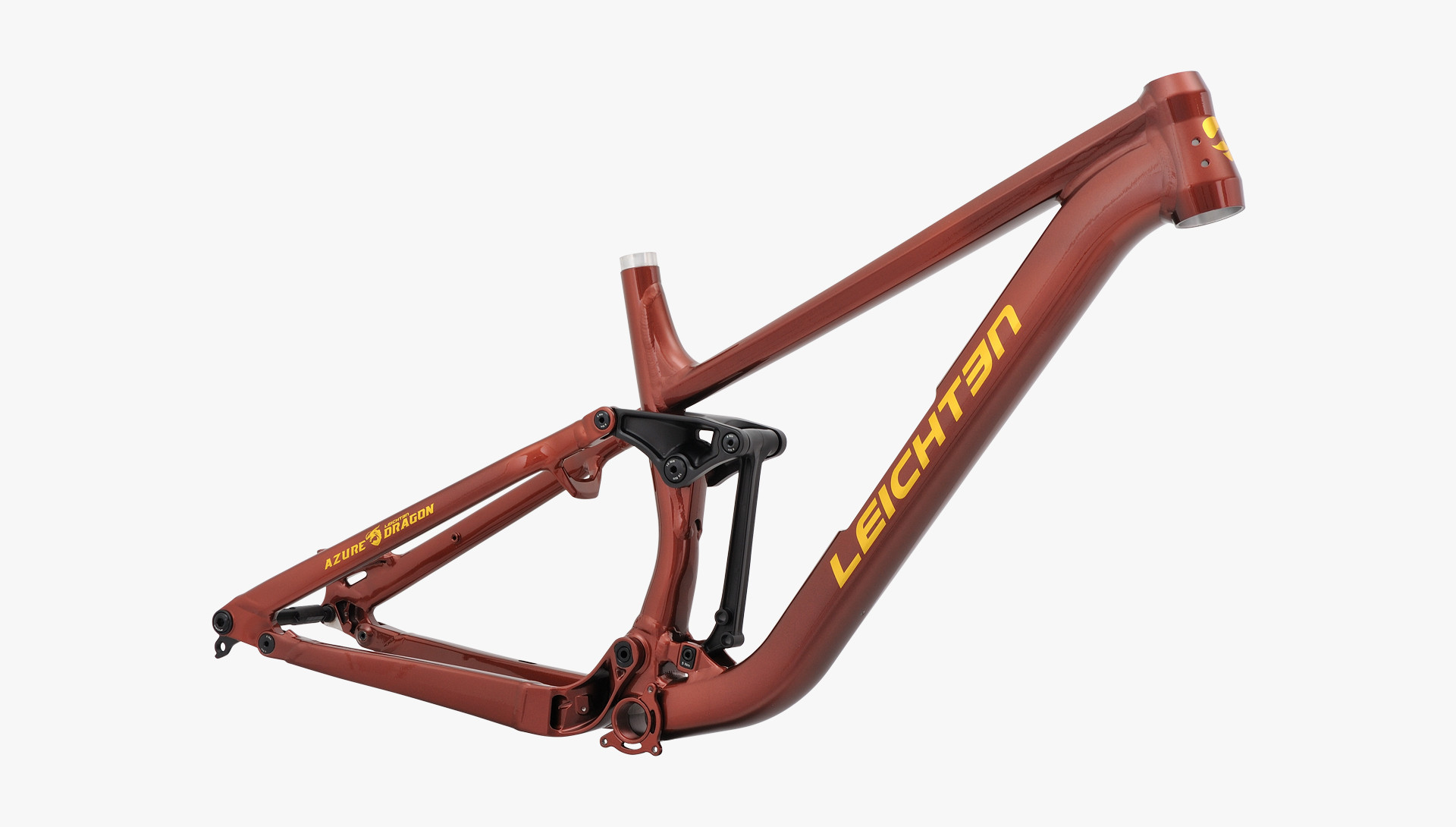

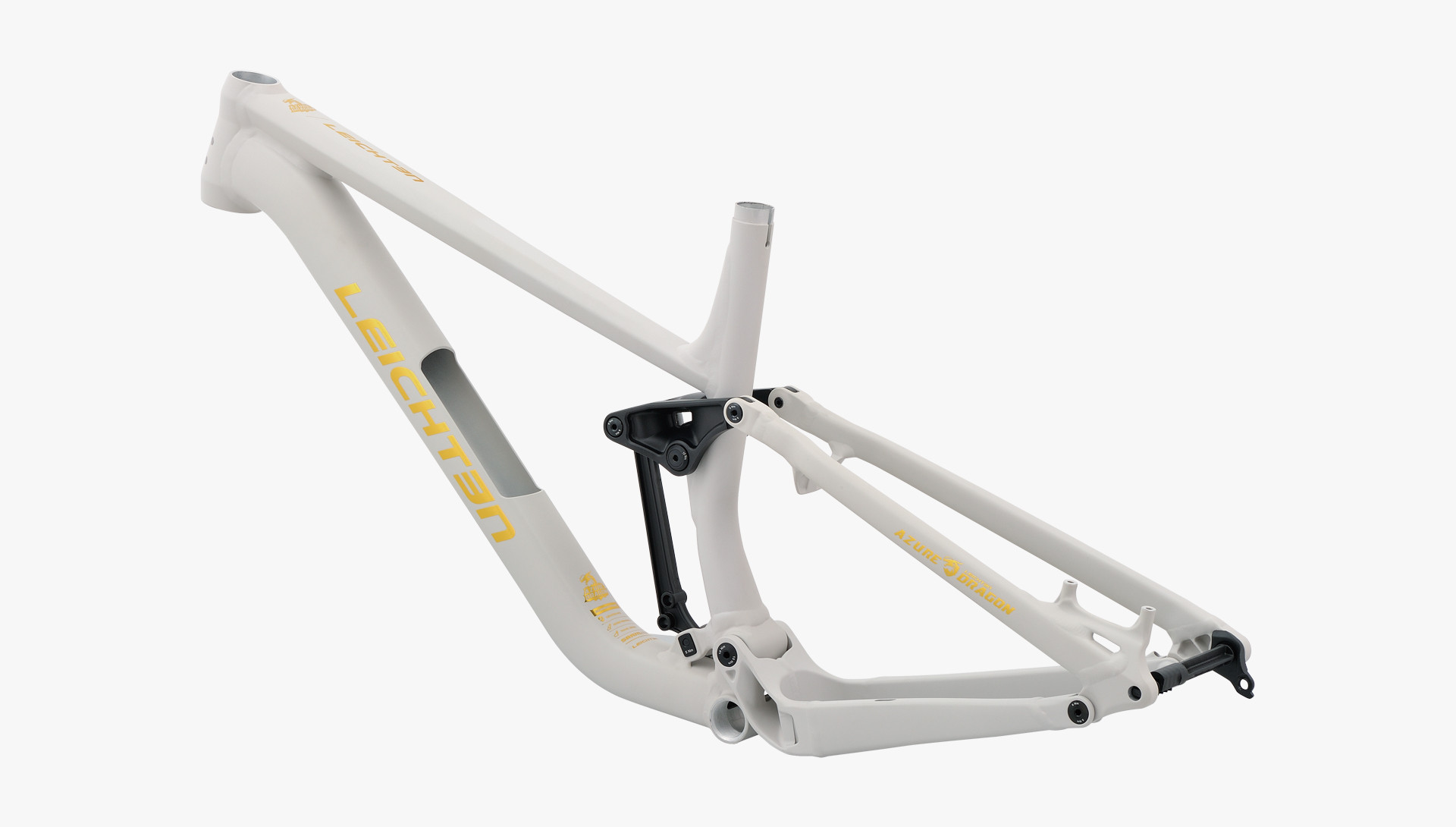

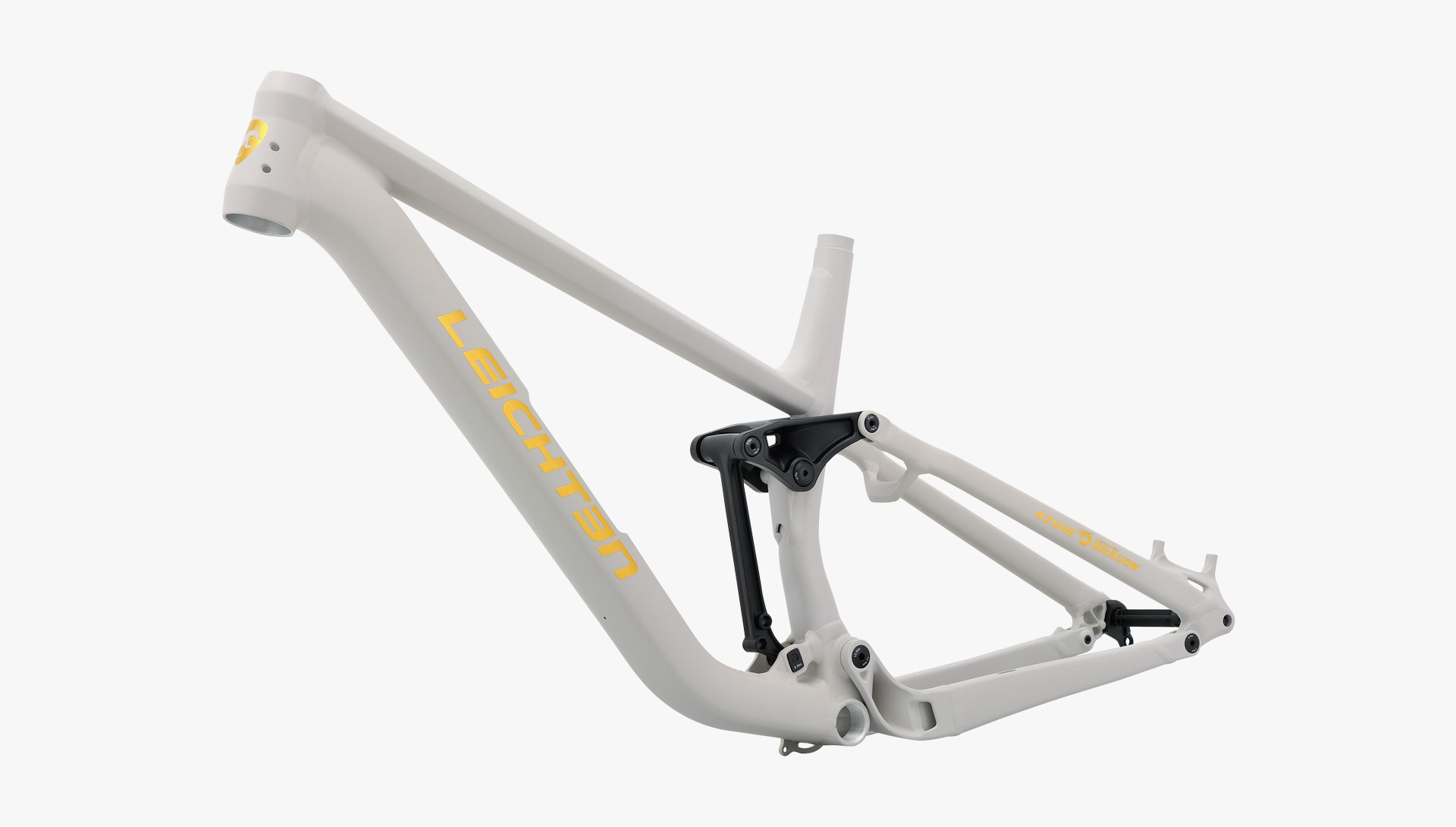

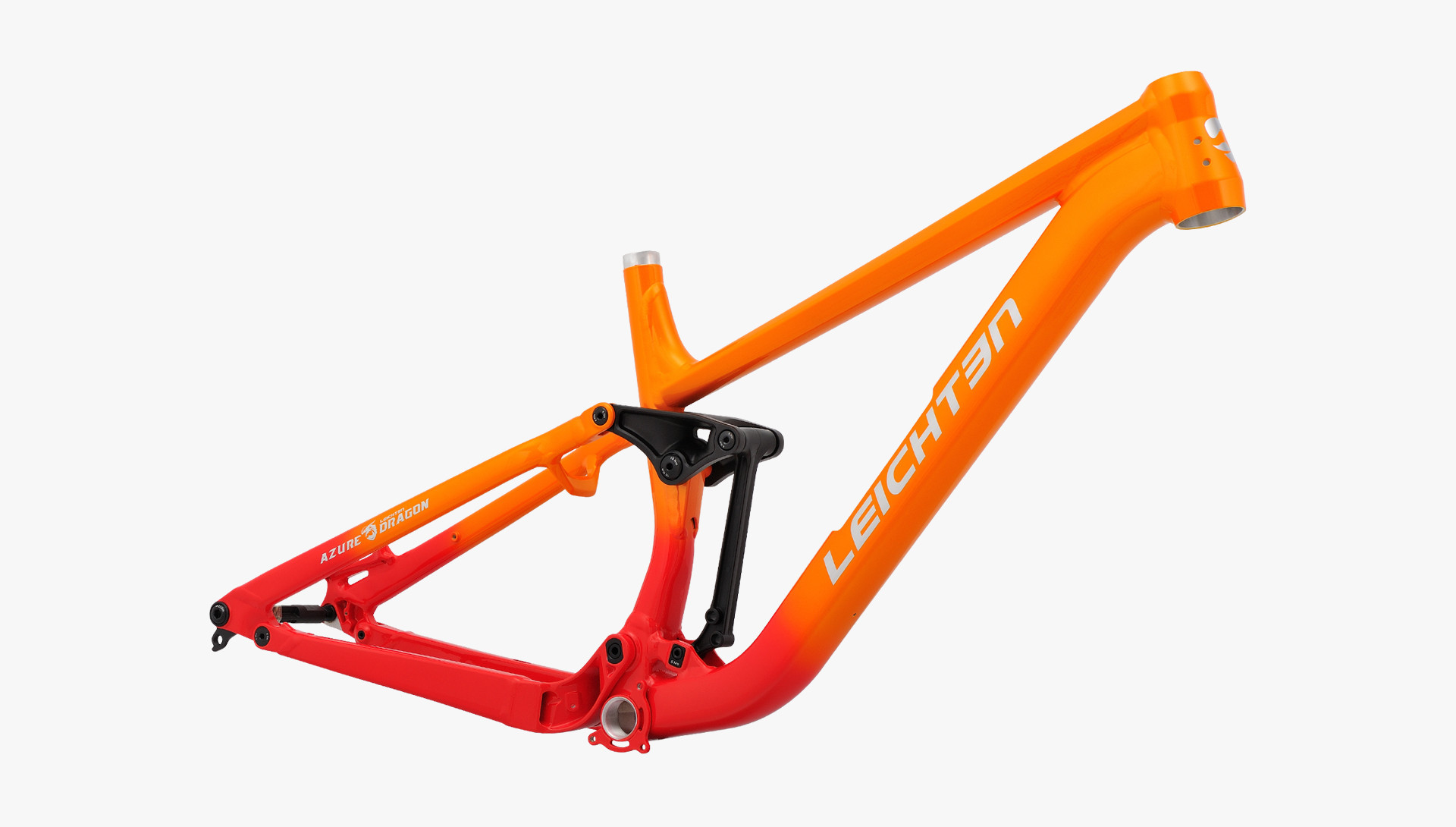

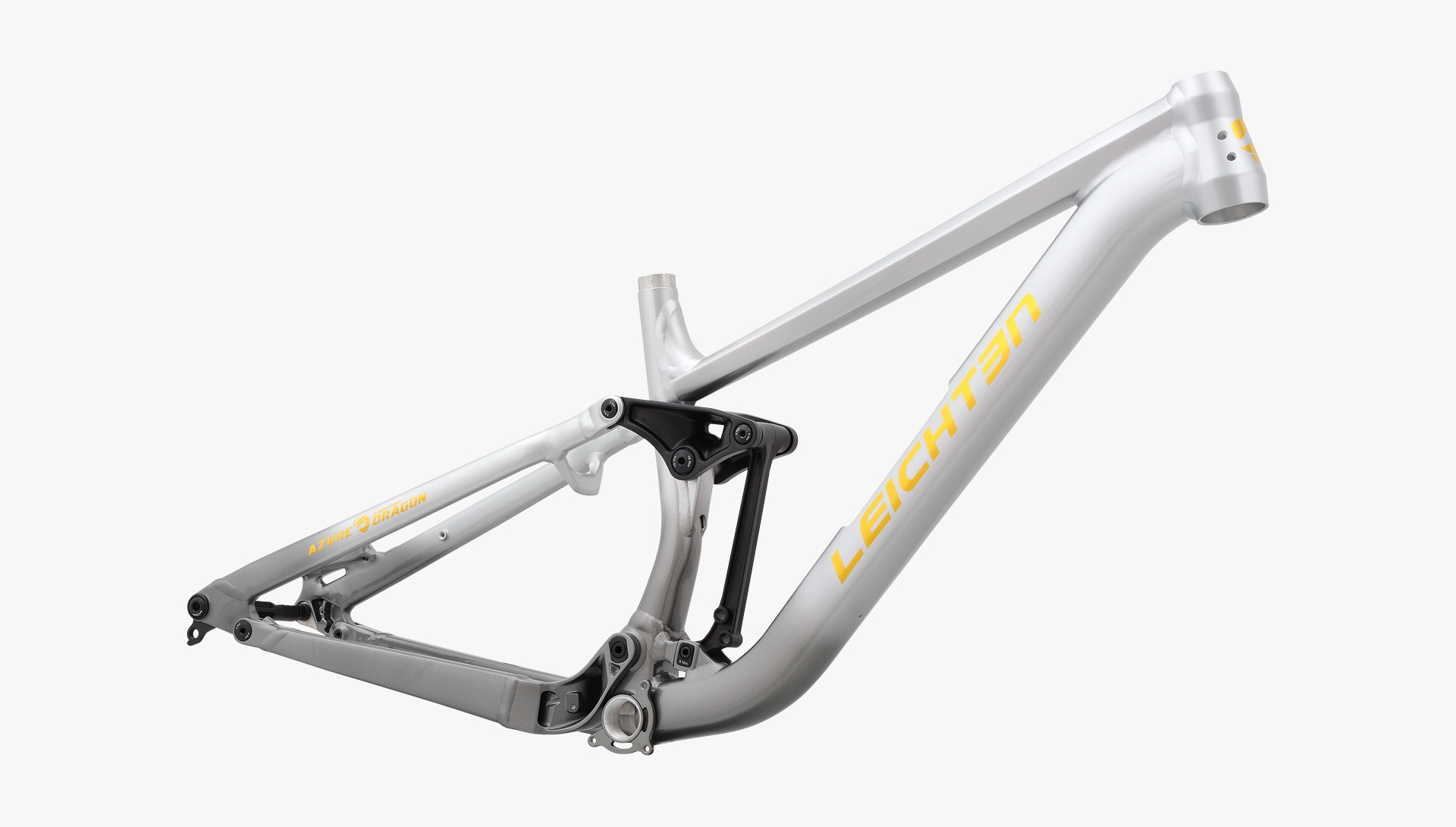

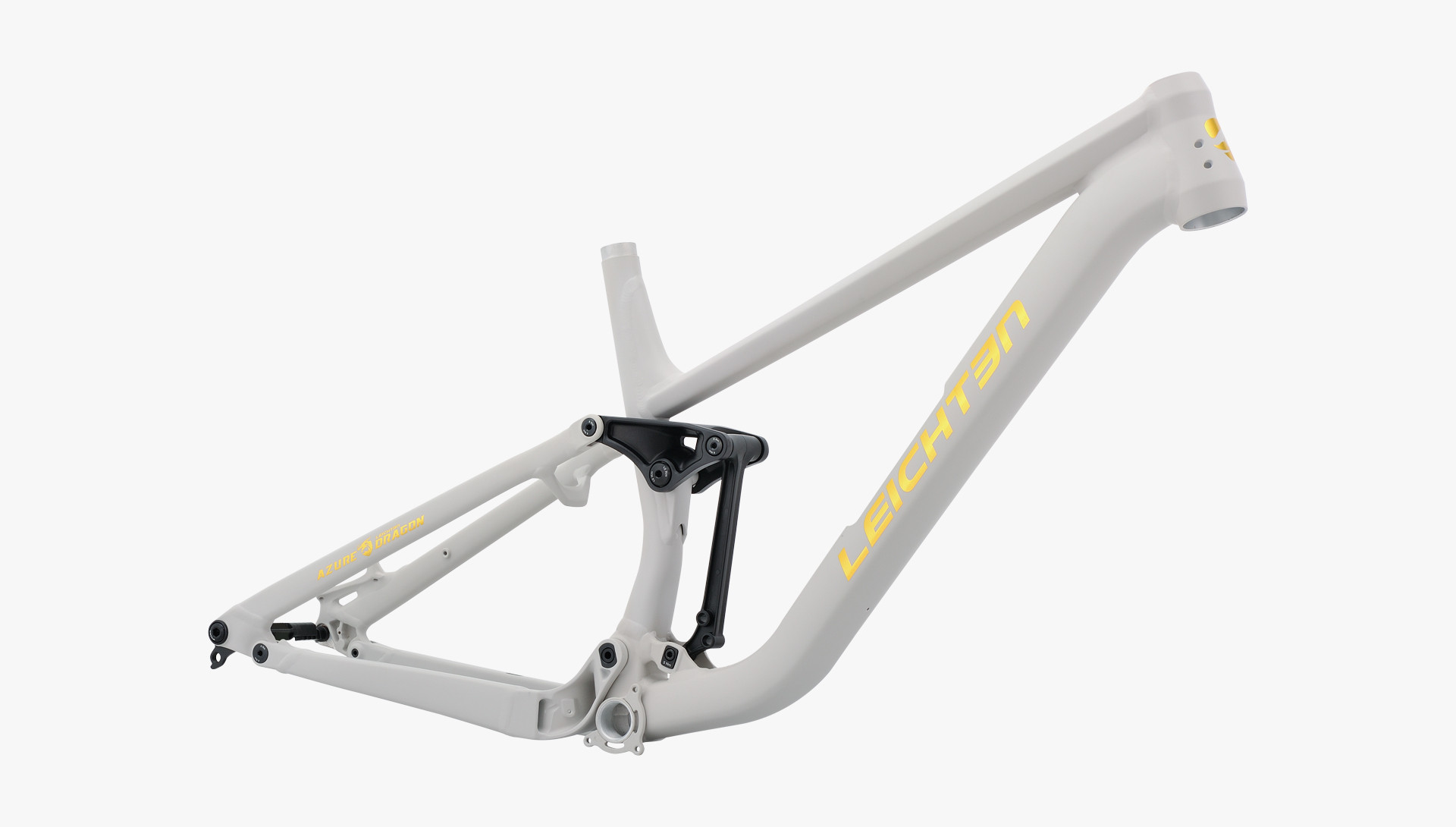

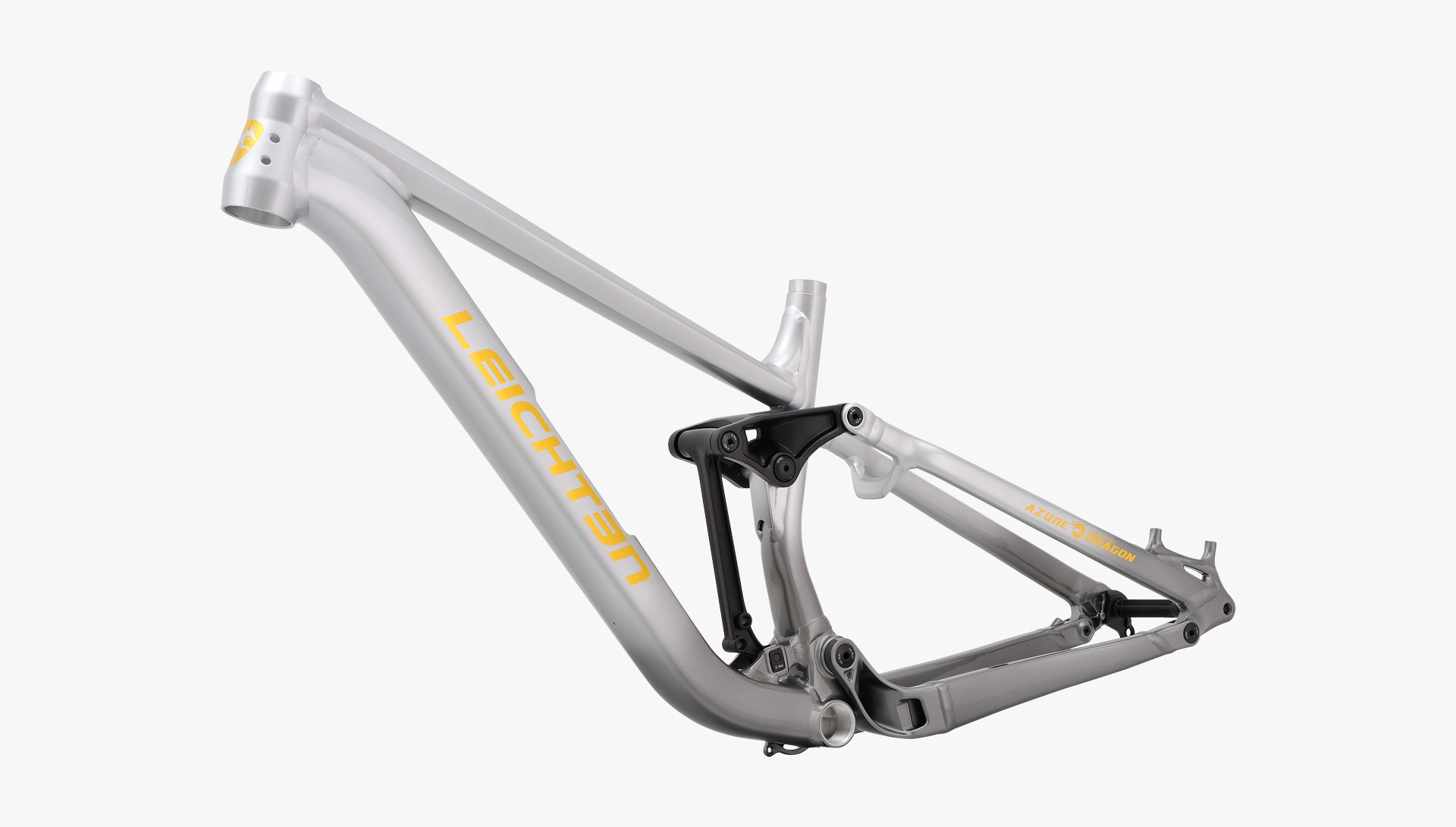

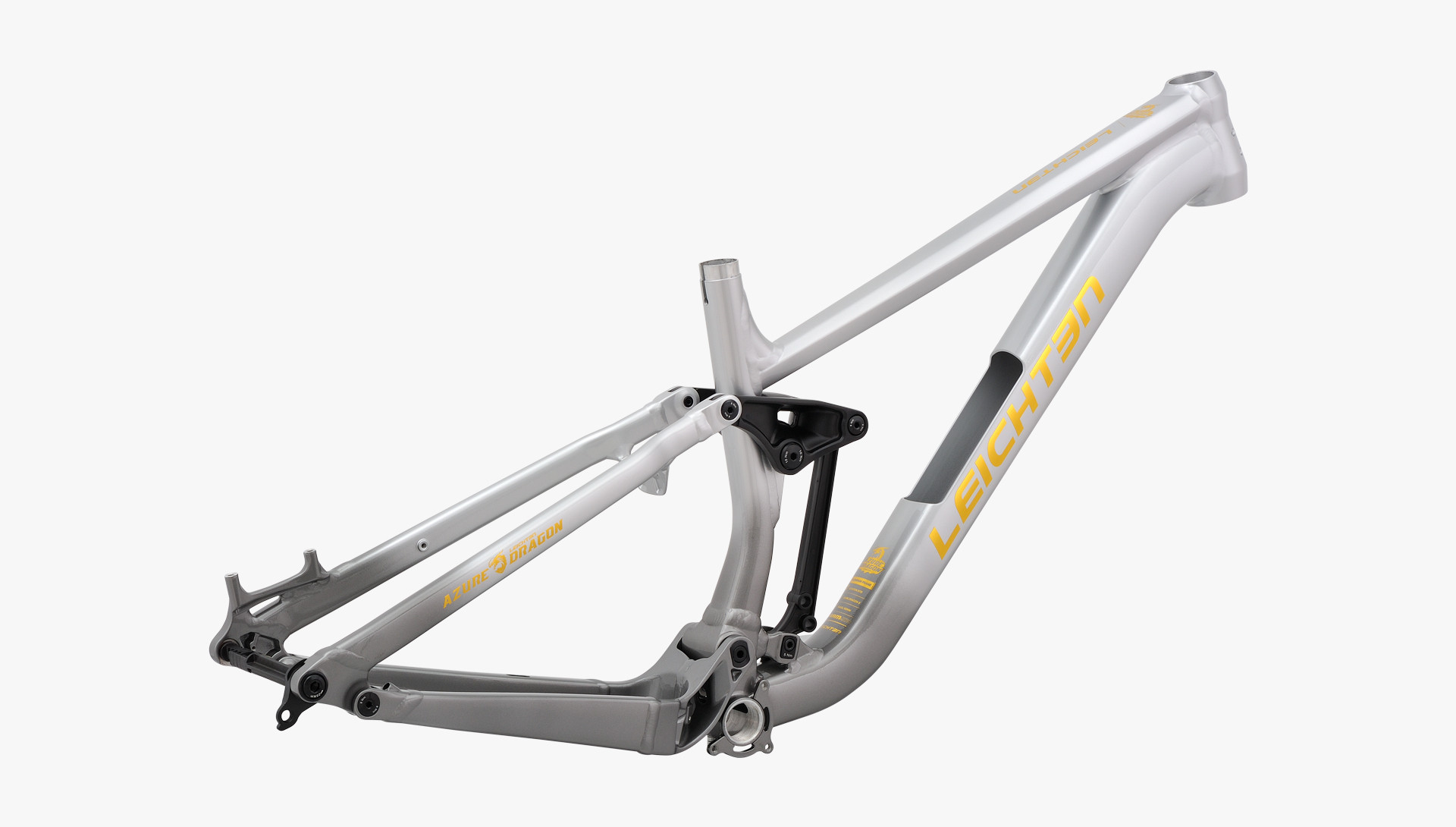

AZURE DRACHE FRAME
Crafted with competition-grade aluminum alloy forging, this frame showcases rugged ca.pability across all terrains. The meticulously tuned four-bar linkage suspension systemachieves an optimal balance between lightweight agility and structural strength, deliveringconfident control on demanding trails, Whether carving through steep descents or navi-gating root-strewn forest paths, the Azure Drache's proven reliability stands ready to tackle your toughest trail challenges.
Bicycle Specification
- 1Frame Size: S/M/L
- 2 Headset: 1-1/8”+1.5”
- 3 Seatpost: Ф31.6mm
- 4 Cable routing: internal cable
- 5 Travel: F180/R 165
- 6 Tire(MAX): 29x2.6“
- 7 Width of rear axle: 12x148mm
- 8 Chainwheel(MAX): 36T
- 9 Middle shock: 205x60/62.5/65mm
- 11 Brake: 180mm
- 12 Rear Axle: 176mm M12xP1.0xL15

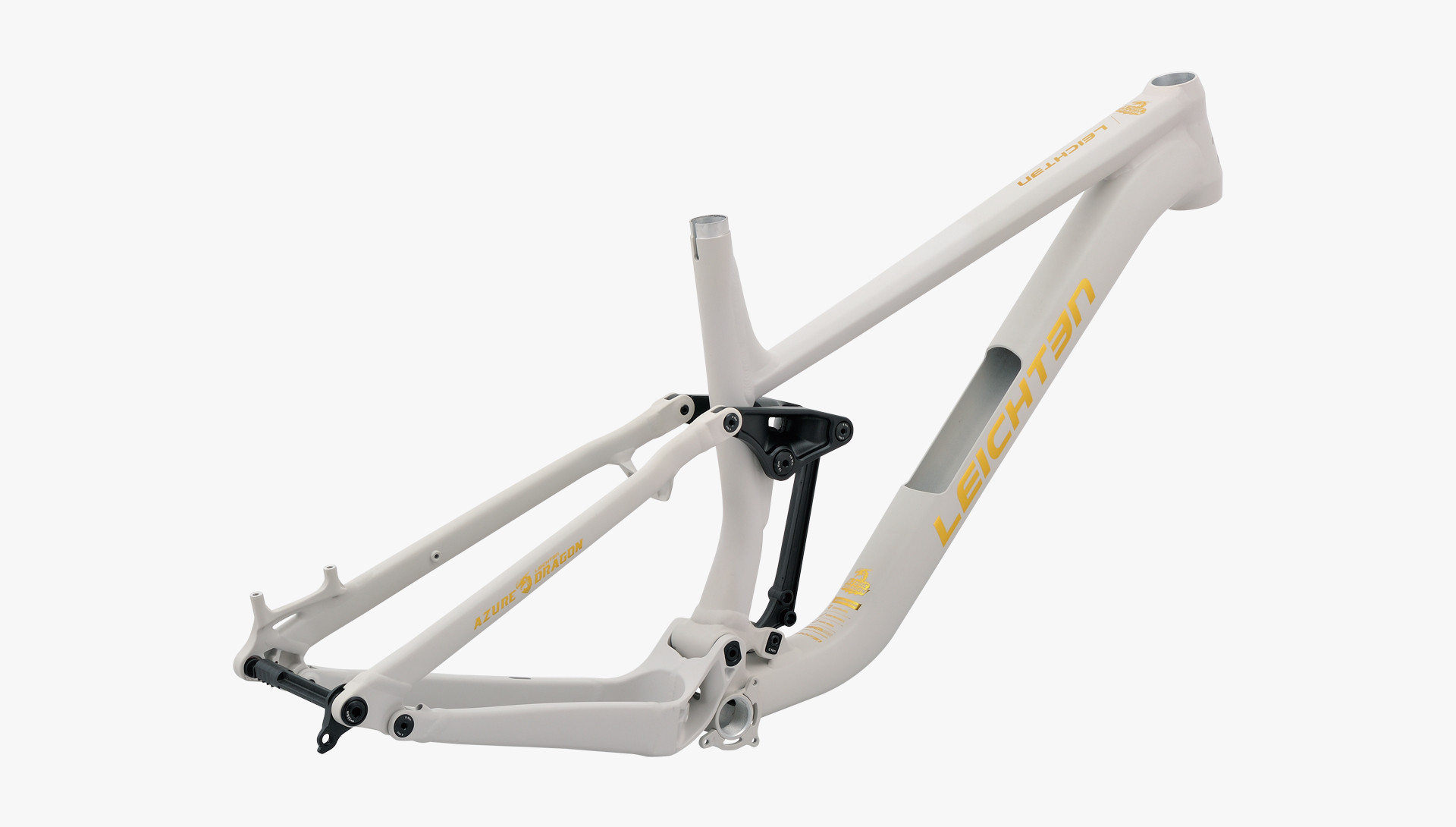

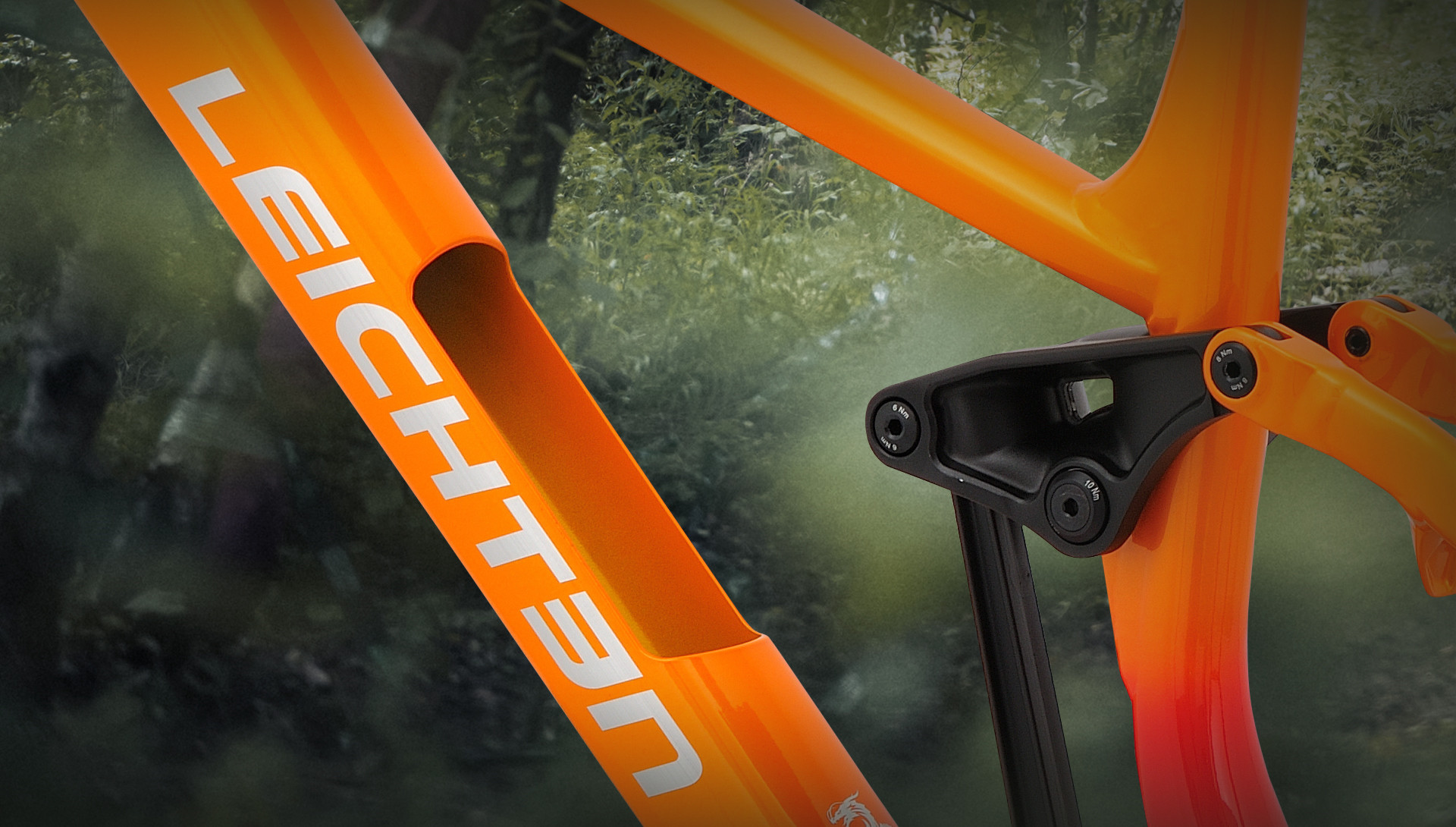

INNOVATIVE DOWN TUBE STORAGE SYSTEM
Featuring a proprietary sealed structure with a water and dust-resistant cover plate, itensures safe storage for portable tools and supplies, enabling you to readily accessnecessary gear during long-distance rides and maintain a consistent competitive con-dition.

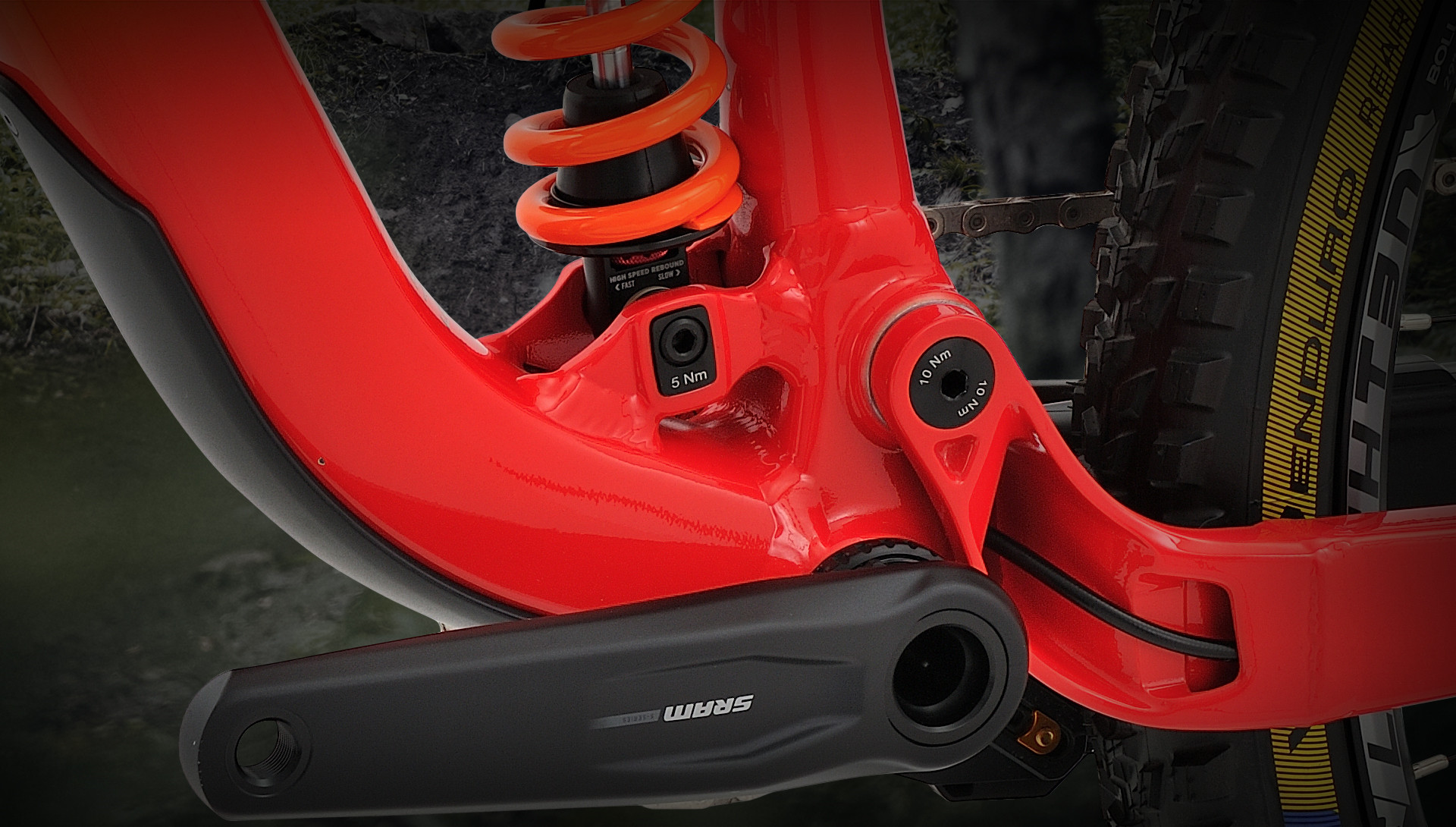

REVERSIBLE SPACER DESIGN
By utilizing reversible spacers to adjust the frame's compression ratio, riders canfine-tune the bike's responsiveness and stability to match varying riding demands

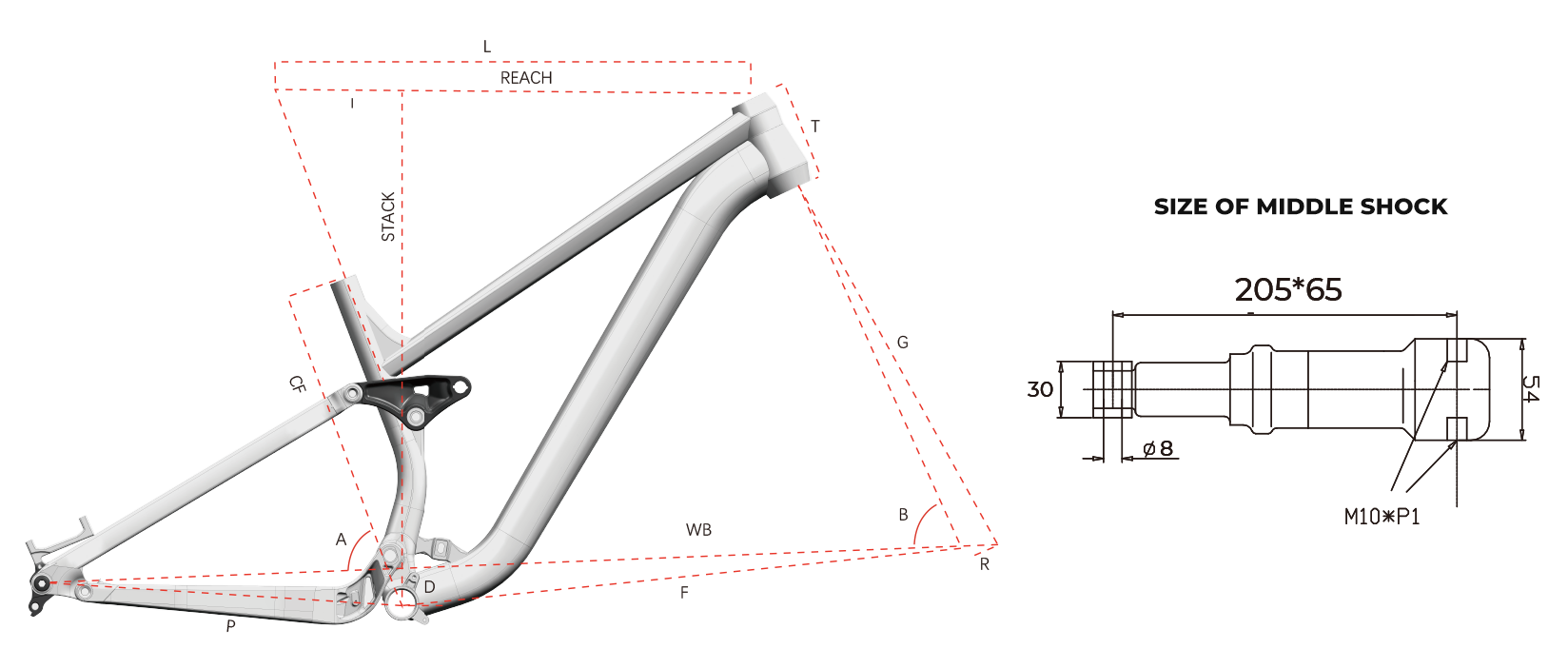

FRAME GEOMETRY
